WELL TESTING EQUIPMENTS

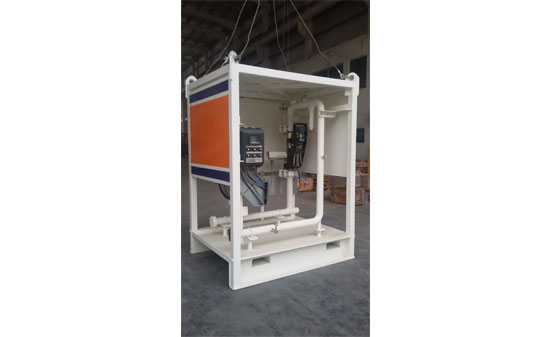

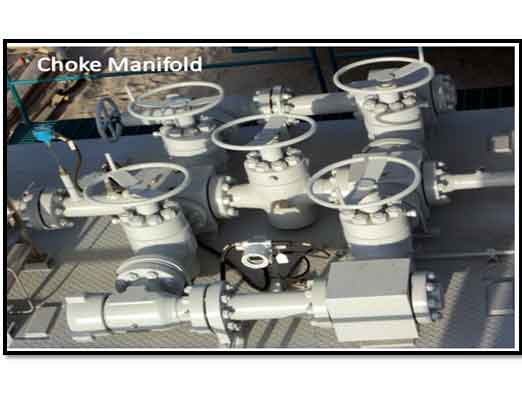

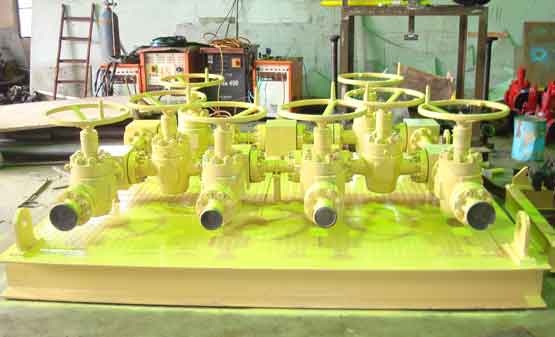

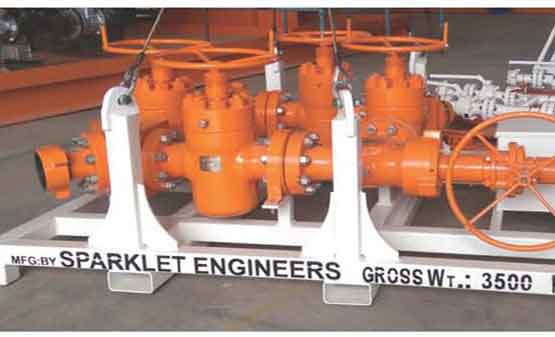

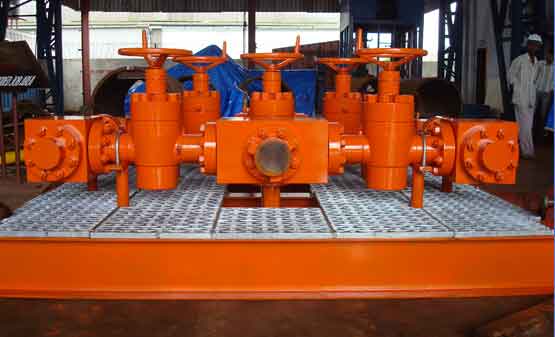

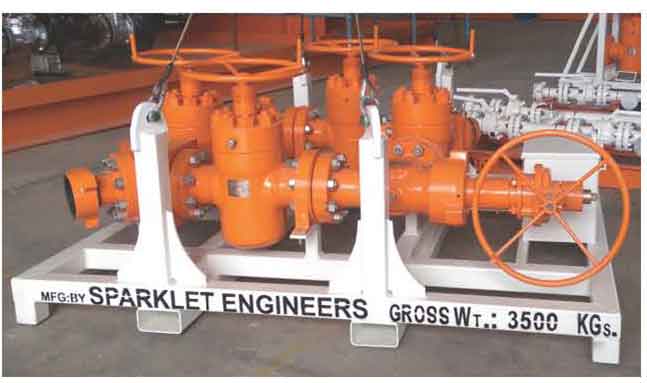

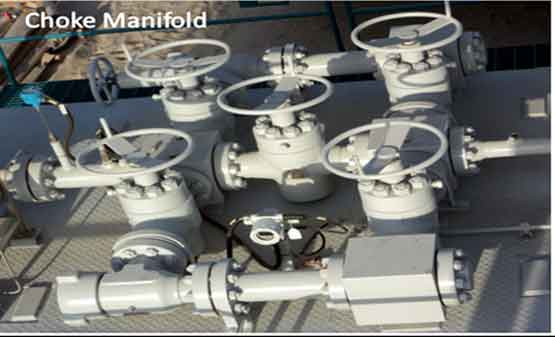

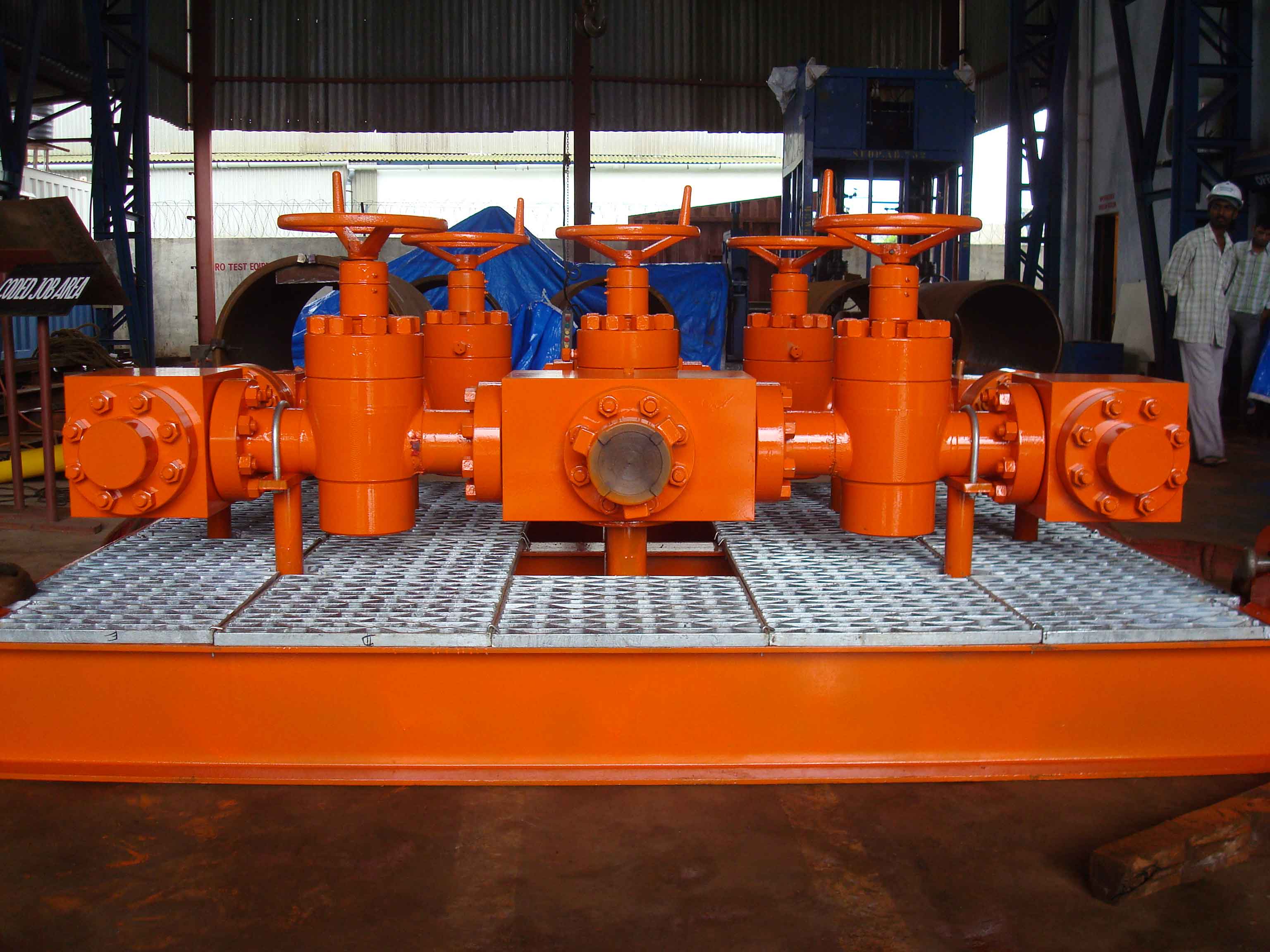

CHOKE MANIFOLDS

Technical Description

Sparklet Designs and manufactures Choke Manifold Equipment.

Specifications:
  • Working Pressure : 5000 & 10000 psi
  • Sizes - : 2-1/16”, 3-1/8”, 3-1/16”

Flanges as per API 6A with Hammer Union ends Orientation of Gate Valves and Chokes as per requirement.

ERUPTION MANIFOLDS

Technical Description

Sparklet Designs and manufactures Choke Manifold Equipment.

Specifications:
  • Working Pressure : 5000 & 10000 psi
  • Sizes - : 2-1/16”, 3-1/8”, 3-1/16”

Flanges as per API 6A with Hammer Union ends Orientation of Gate Valves and Chokes as per requirement.

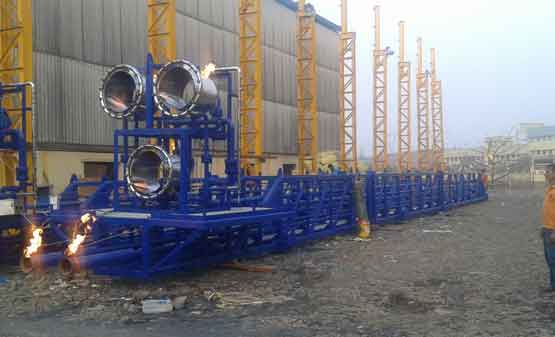

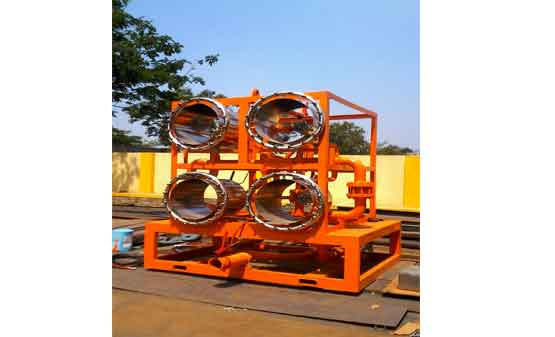

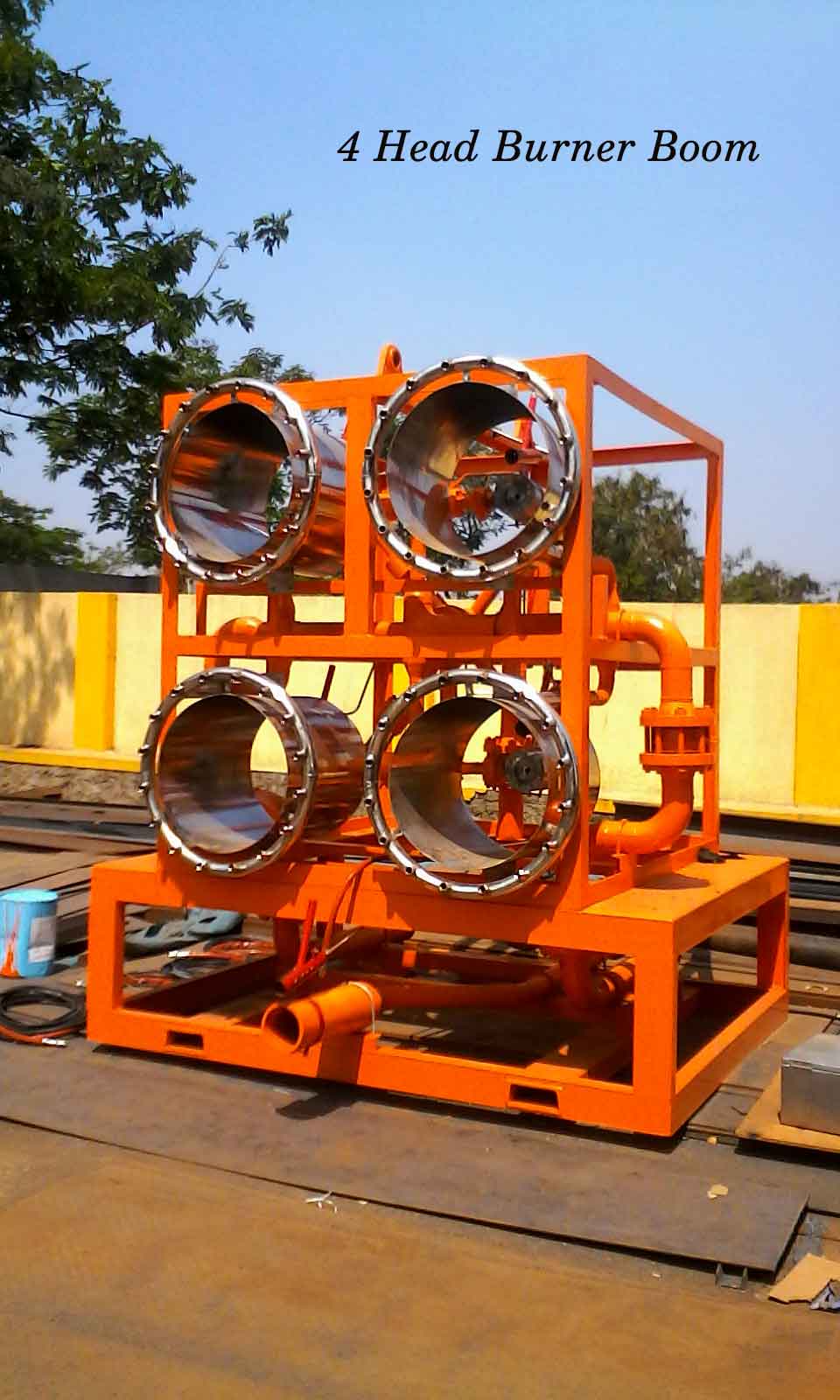

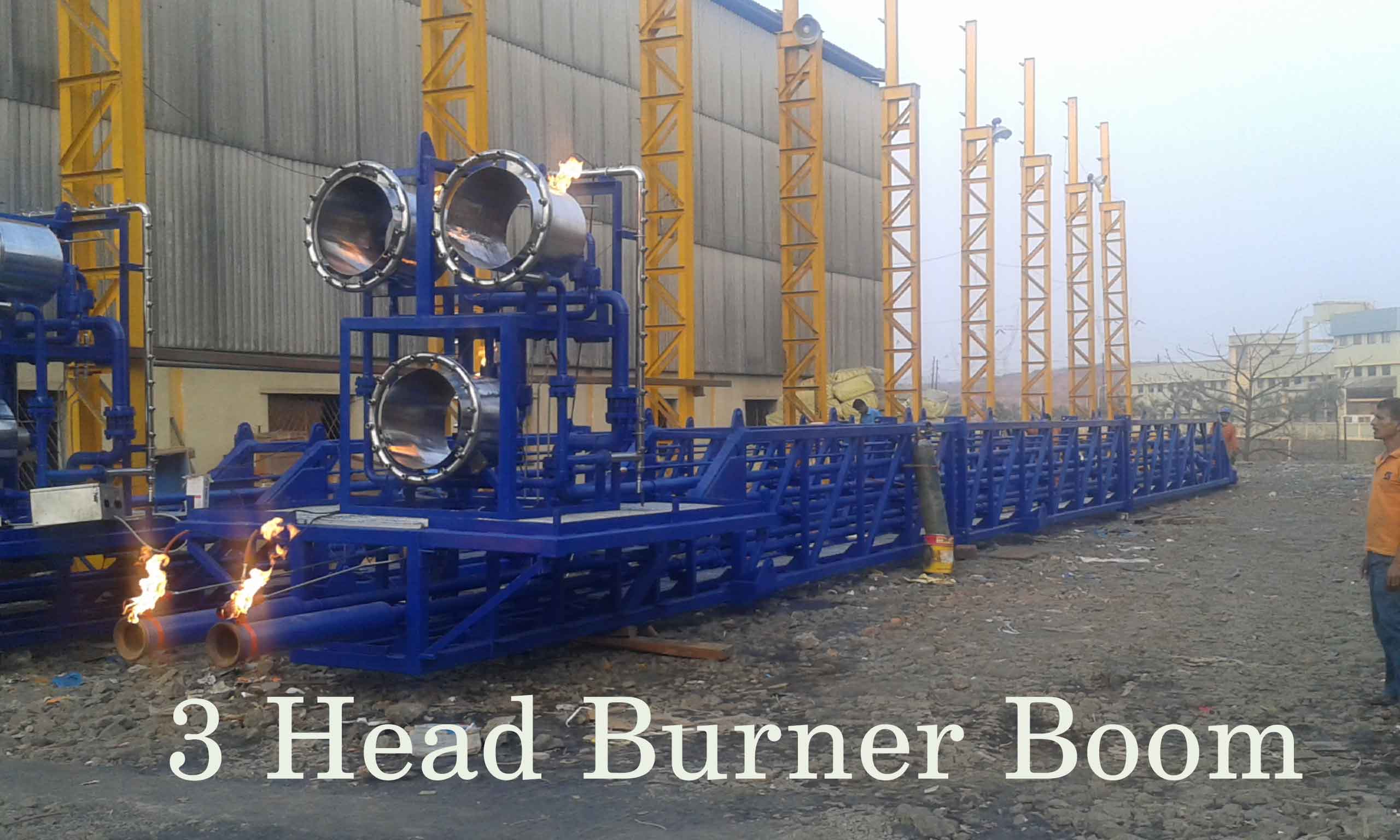

Oil & Gas Burner Booms

Technical Description

Specification for Off Shore Burner and Onshore

  • Atomizer Capacity : Upto 15000 BOPD
  • Service : Sour
  • Number of Heads : Upto 4
  • Gas Flow Rates : Upto 3 MM SCF / Day
  • Water Required : 10,000 - 15000 BBL / day
  • Pilot Firing : Diesel or LPG

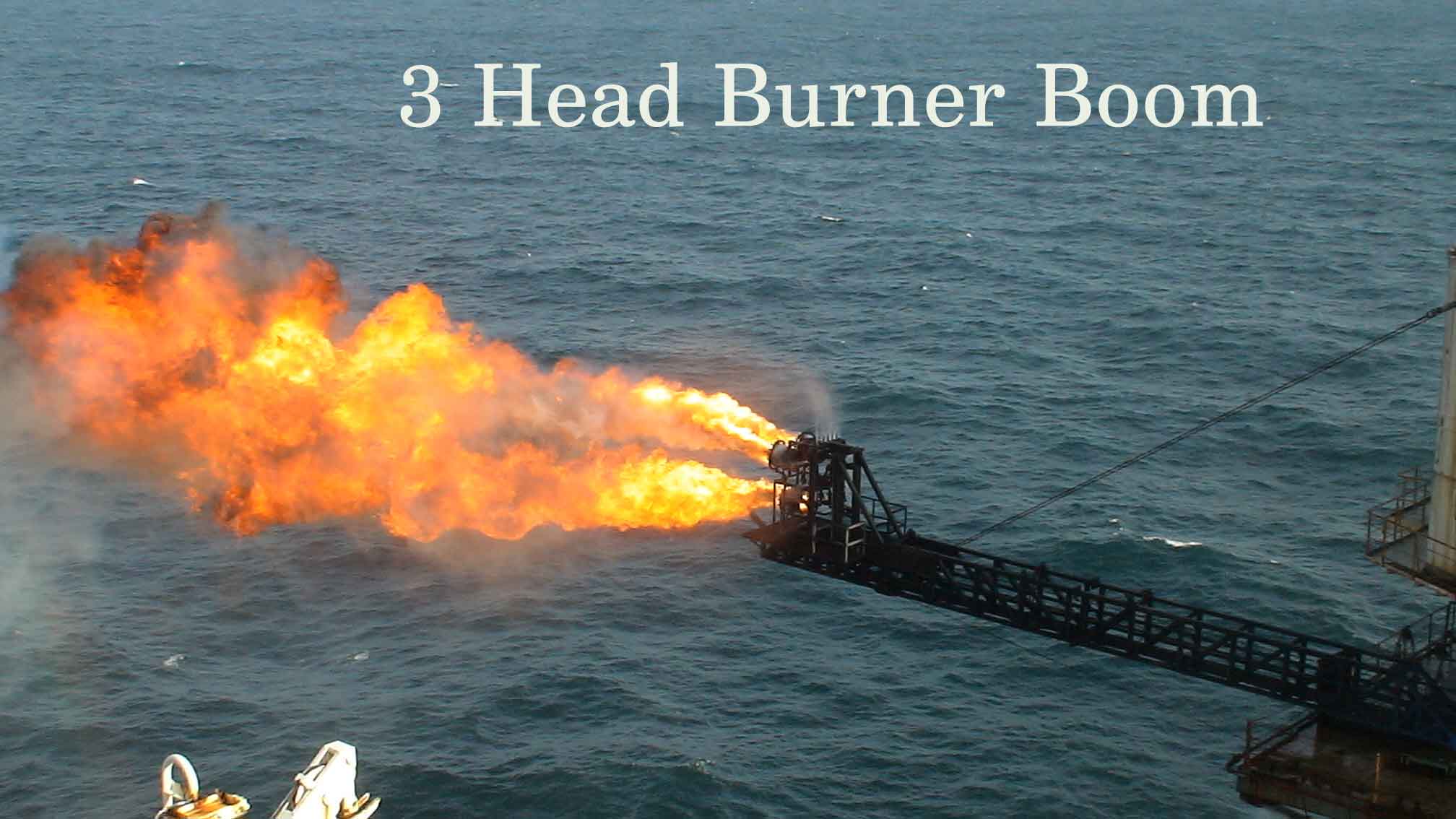

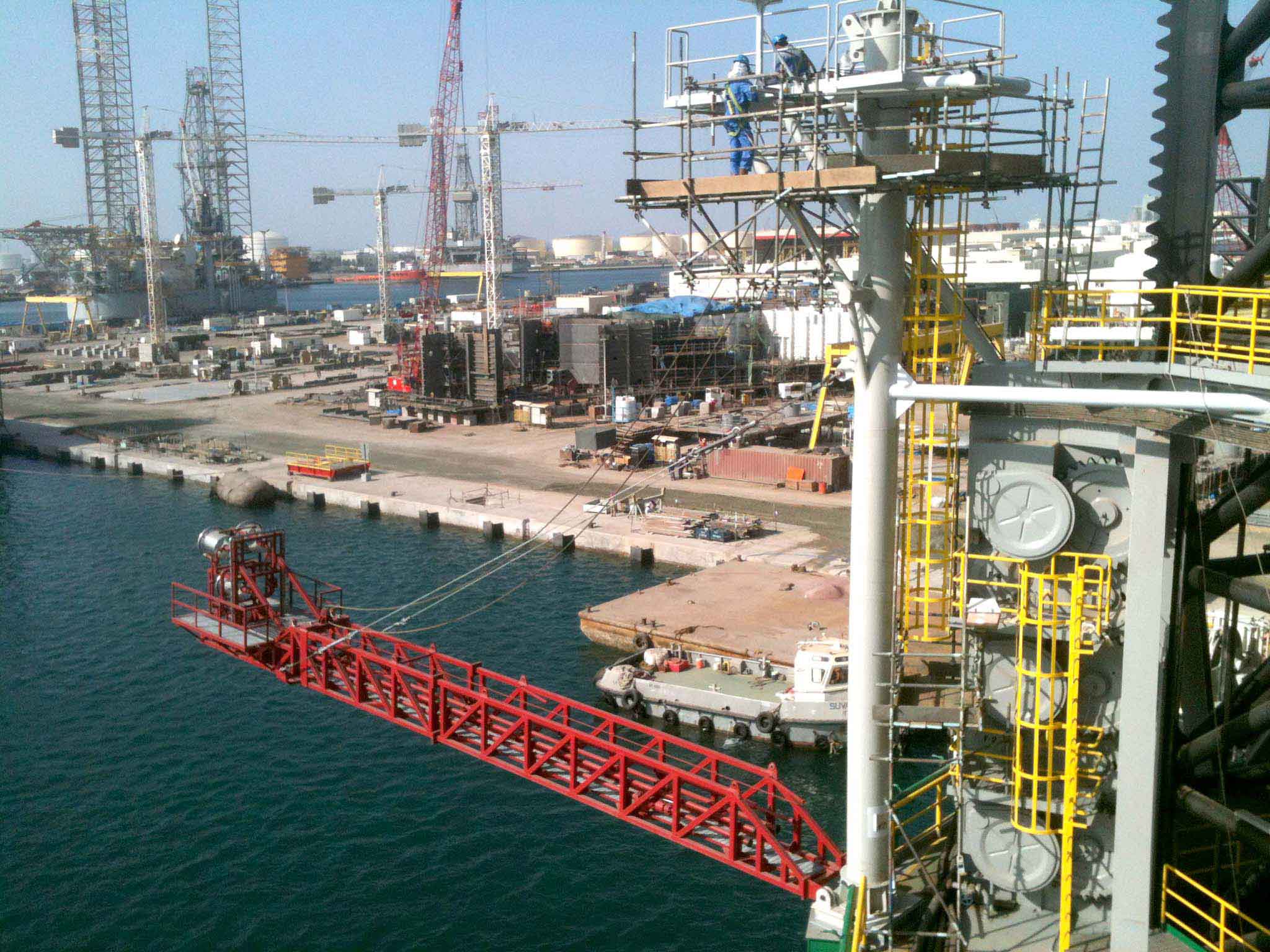

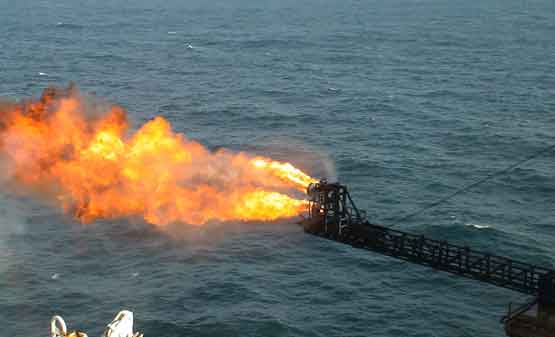

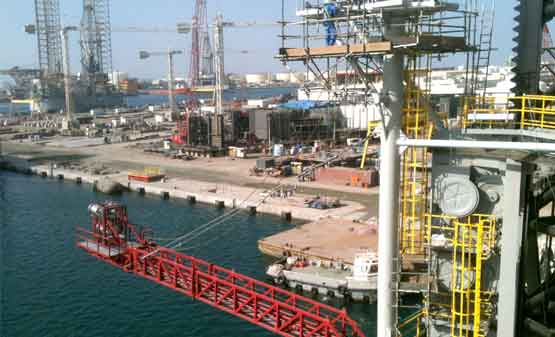

Offshore Burner Booms

TPI approved Design Calculations for up to 90’ for OFFSHORE Burner Booms and King Post Load Tested

2 or 3 Sections to make up 60’ to 90’ respectively Construction Tubular Project Specific requirements can be designed and fabricated

SEPARATORS FOR PRODUCTION AND TESTING

Technical Description

Sparklet Designs Horizontal, Vertical Separators for Well Testing, to separator and measures the Oil, Gas and Water produced. Designed as per Customer Specifications. Phase : 2 Phase & 3 Phase Pressure Ratings : 3 KG / CM2 TO 200 KG / CM2 Nominal Capacity :For Testing Gas Upto – 100 MMSCFD Liquid Upto – 20000 BBL / DAY Sparklet Offers Packages With Process Design Mechanical Designs Complete Drawing Package with use of Cad, Solid Works Skids designed to DNV 2.7-1 or equivalent EN standard

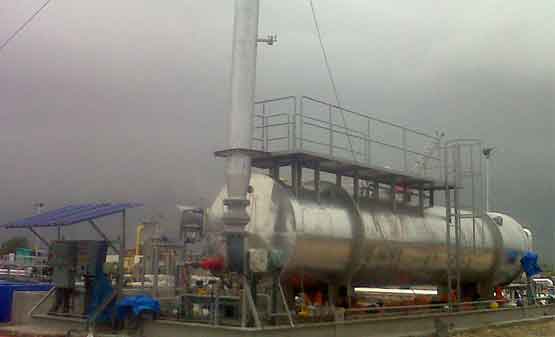

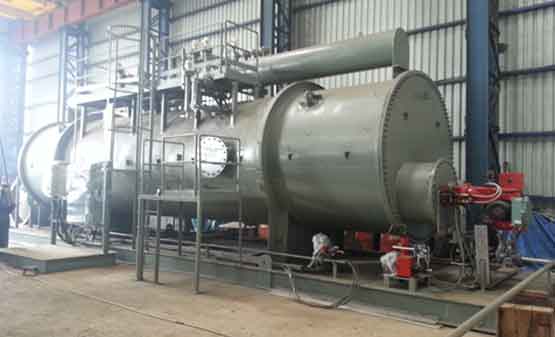

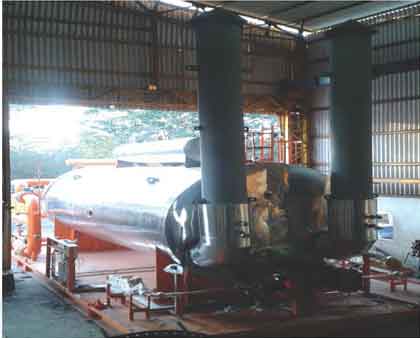

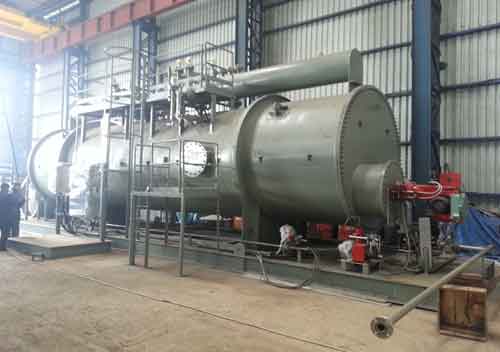

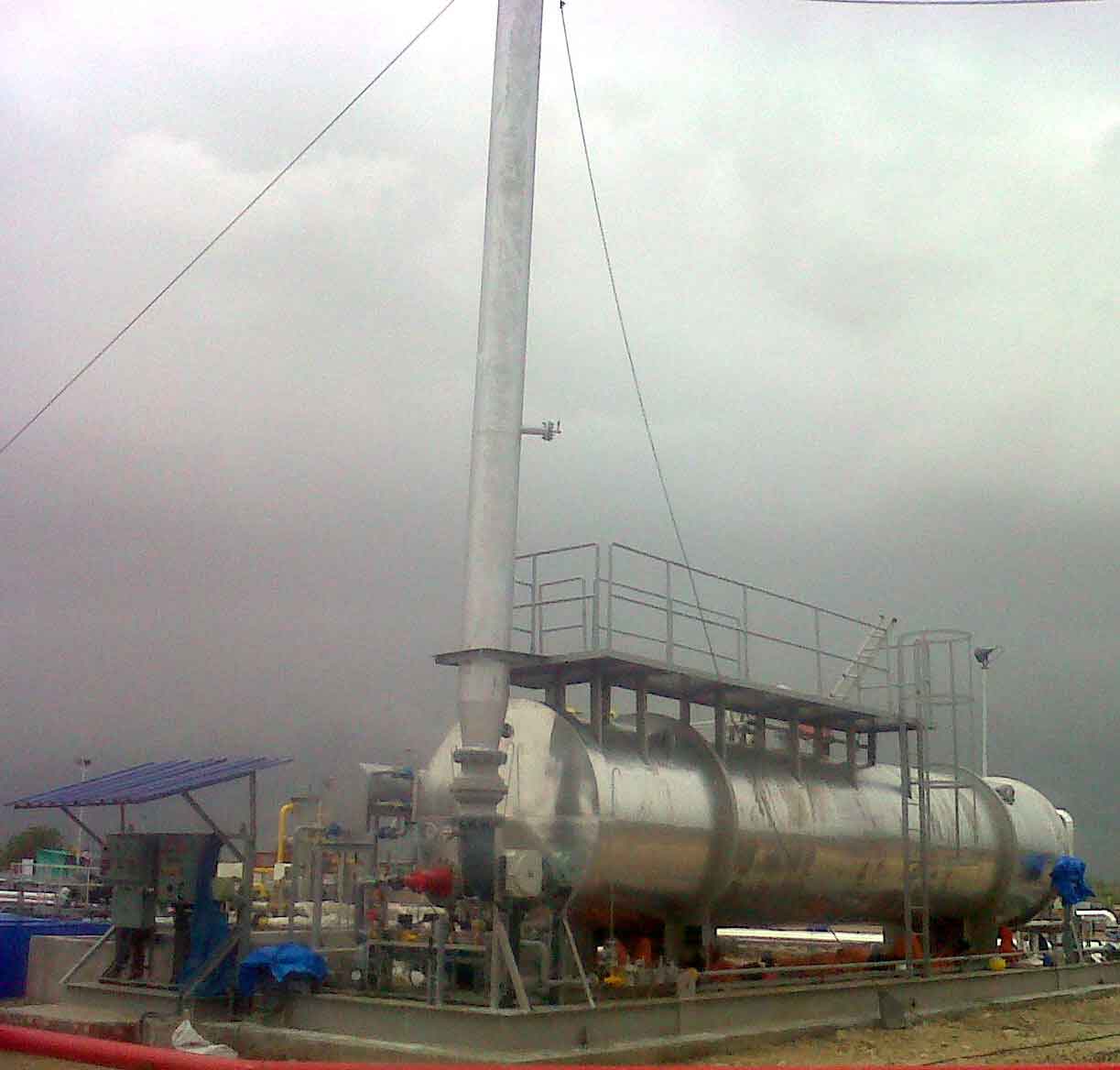

INDIRECT WATER BATH HEATER

Technical Description

Sparklet make water bath heater is capable of heating up to 10,000 BPD of Hydrocarbon oil with gas up to 60 MM SCFD from 0° C to 70° C for DE Waxing and further processing of Crude. The maximum heat transfer provided up to 13 MM BTU / HR.

The Water Bath Heater has Process Fluid coils, carrying the hydrocarbon oil with gas in & out of the Water Bath with choke & manifold for flow control & bypass of oil. The coiled tubes have a capacity to with stand a pressure off 10000 psi. Equipment Design as per API 12 K

Burner System : The Bath Heater uses Diesel Oil as fuel with Natural Gas / LPG for ignition. Burner used are of International standard makes. The burner system has in line Spark Arrestor and Stack at the end of the Fire Tube Outlet.

Manifold : The unit is installed with API 6A up to 10 K Gate Valves and Chokes. By pass manifold provided for efficient flow control.

Instrumentation : The Bath Heater comes complete with all Instrumentations and valves, pressure and temperature Gauges, pressure switches, Level indicators, etc.

  • Sparklet Offers Packages With
  • Process Design
  • Mechanical Designs
  • Complete Drawing Package with use of Cad, Solid Works

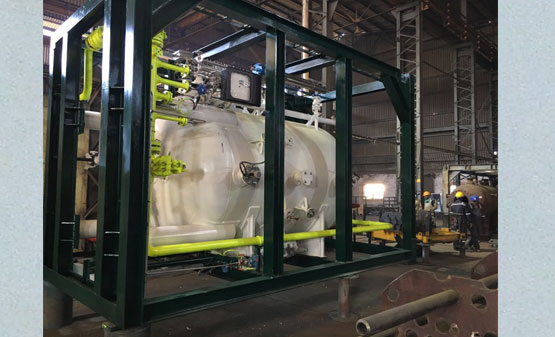

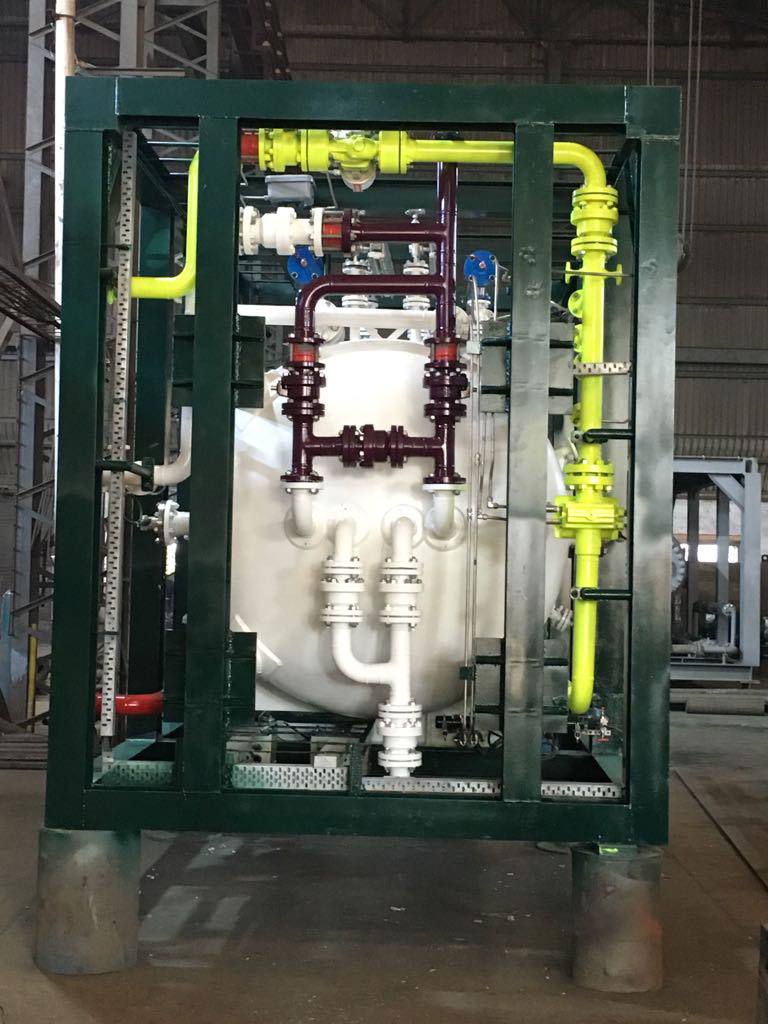

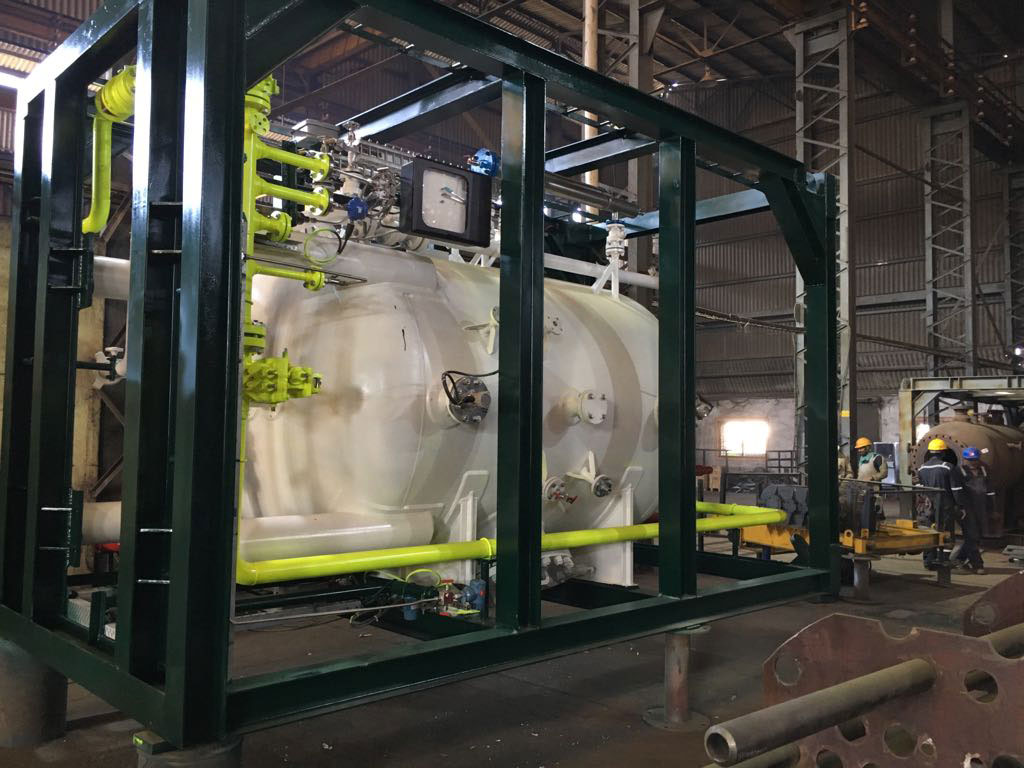

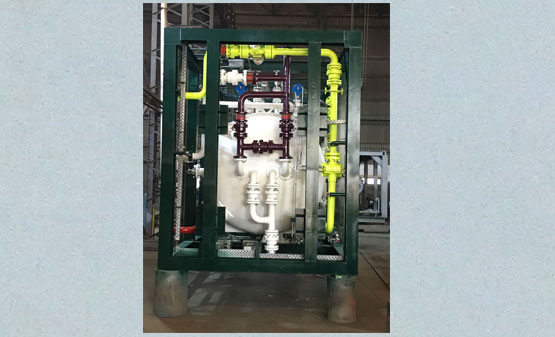

SURGE TANKS

To complete the entire range for Well Testing and production Equipment Sparklet offers to supply Surge tank / Gauge tank.

Salient Features

Working Pressure - 50 Psi to 1440 Psi Tanks With Internal Partition Complete Manifold for High Pressure Level / Pressure / Temperature Gauges

Additional

  • Complete package including Control Valve
  • skid
  • Down Stream Manifold
  • Pump Skid

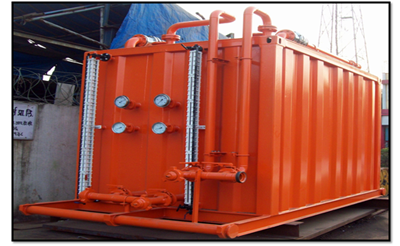

GAUGE TANKS

gauge-tank

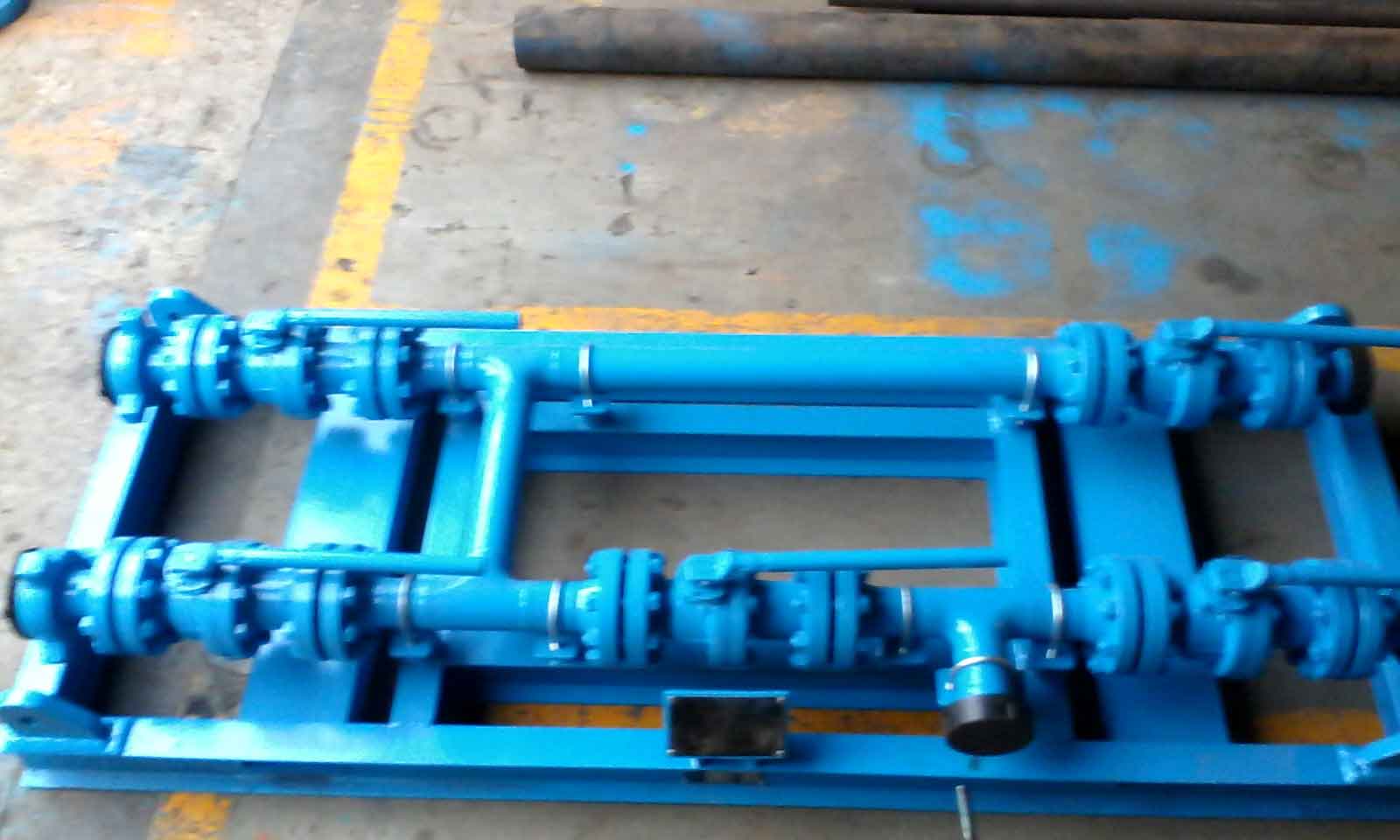

OIL DIVERTER MANIFOLDS

Diverter Manifolds are used to re-direct the well fluids & gasses produced during well testing operations. The Diverter Manifolds are constructed out of Ball Valves selected as per Pressure Ratings. These Manifolds can be used with Sparklet Piping Package

SPECIFICATIONS:

Meets Requirements of NACE MR 0175 Working Pressure Ratings 1440 psi & 2160 psi Sizes 2”, 3”, 4”.

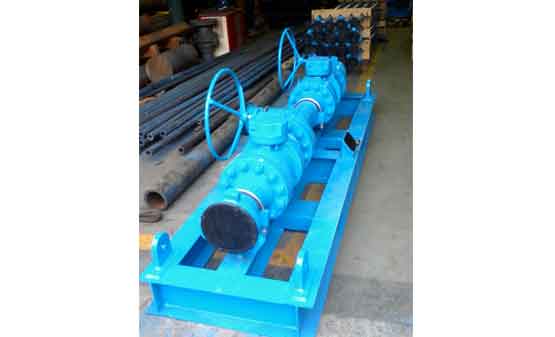

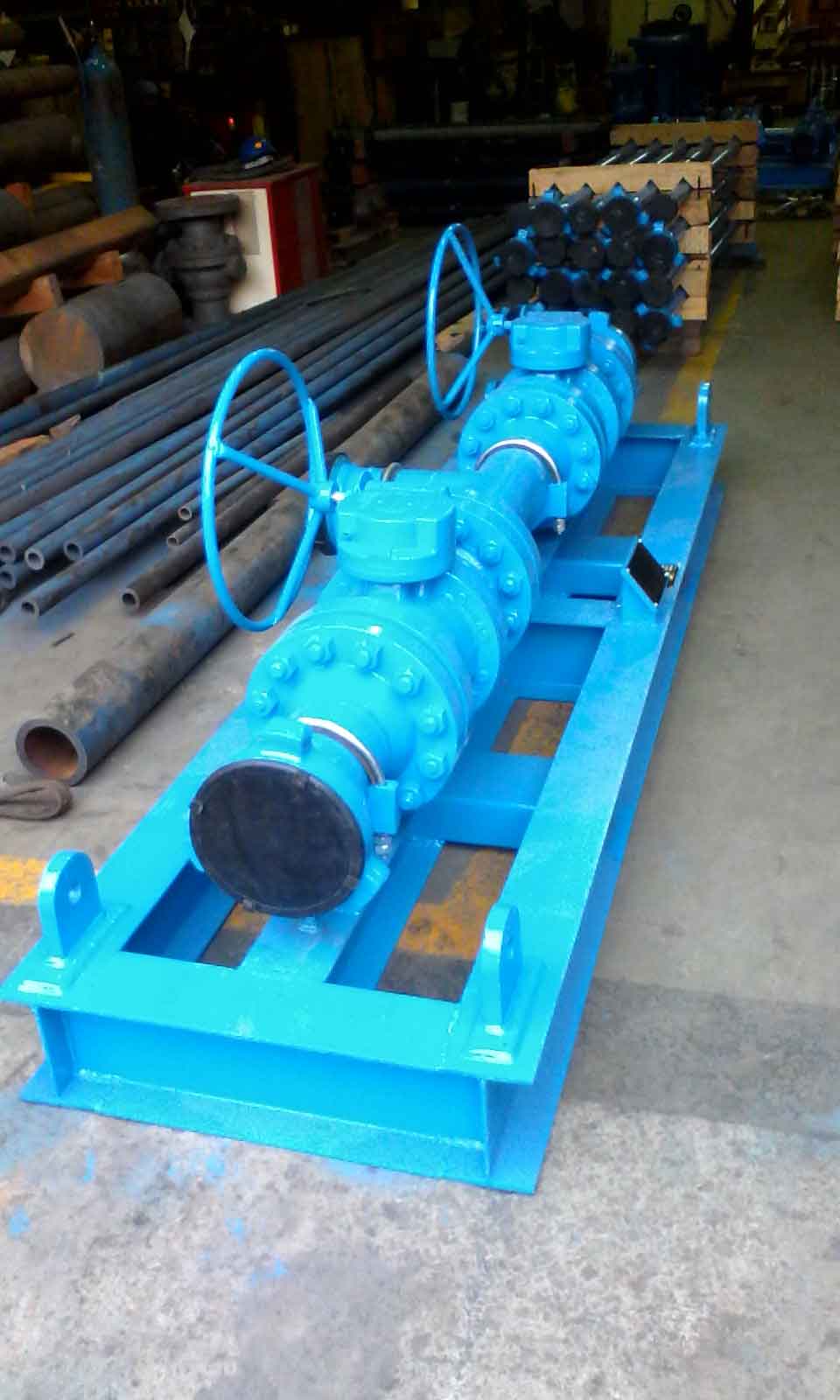

GAS DIVERTER MANIFOLDS

Diverter Manifolds are used to re-direct the well fluids & gasses produced during well testing operations. The Diverter Manifolds are constructed out of Ball Valves selected as per Pressure Ratings. These Manifolds can be used with Sparklet Piping Package

SPECIFICATIONS:

Meets Requirements of NACE MR 0175 Working Pressure Ratings 1440 psi & 2160 psi Sizes 2”, 3”, 4”.

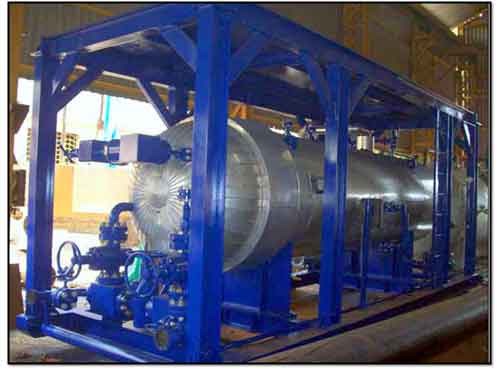

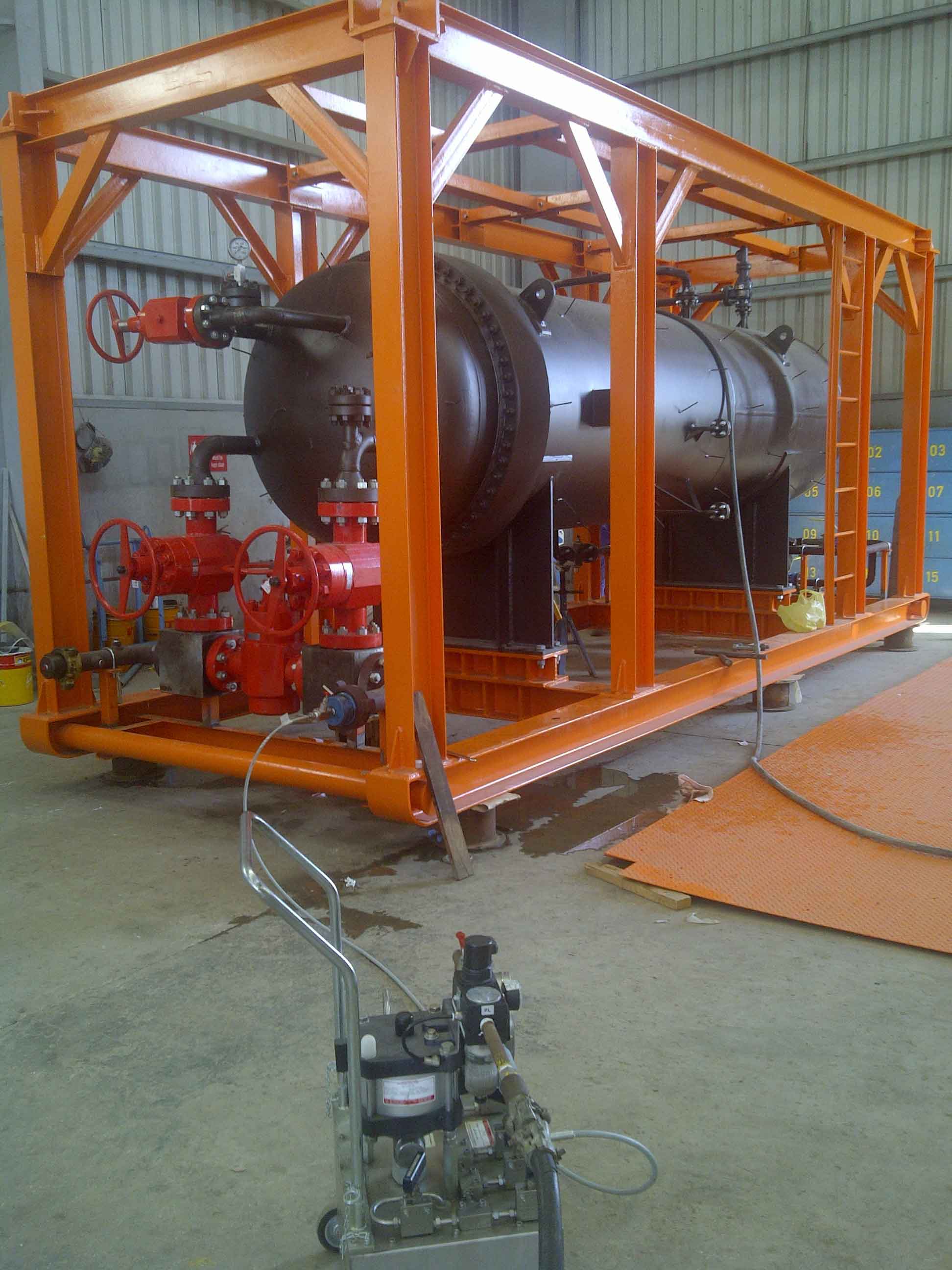

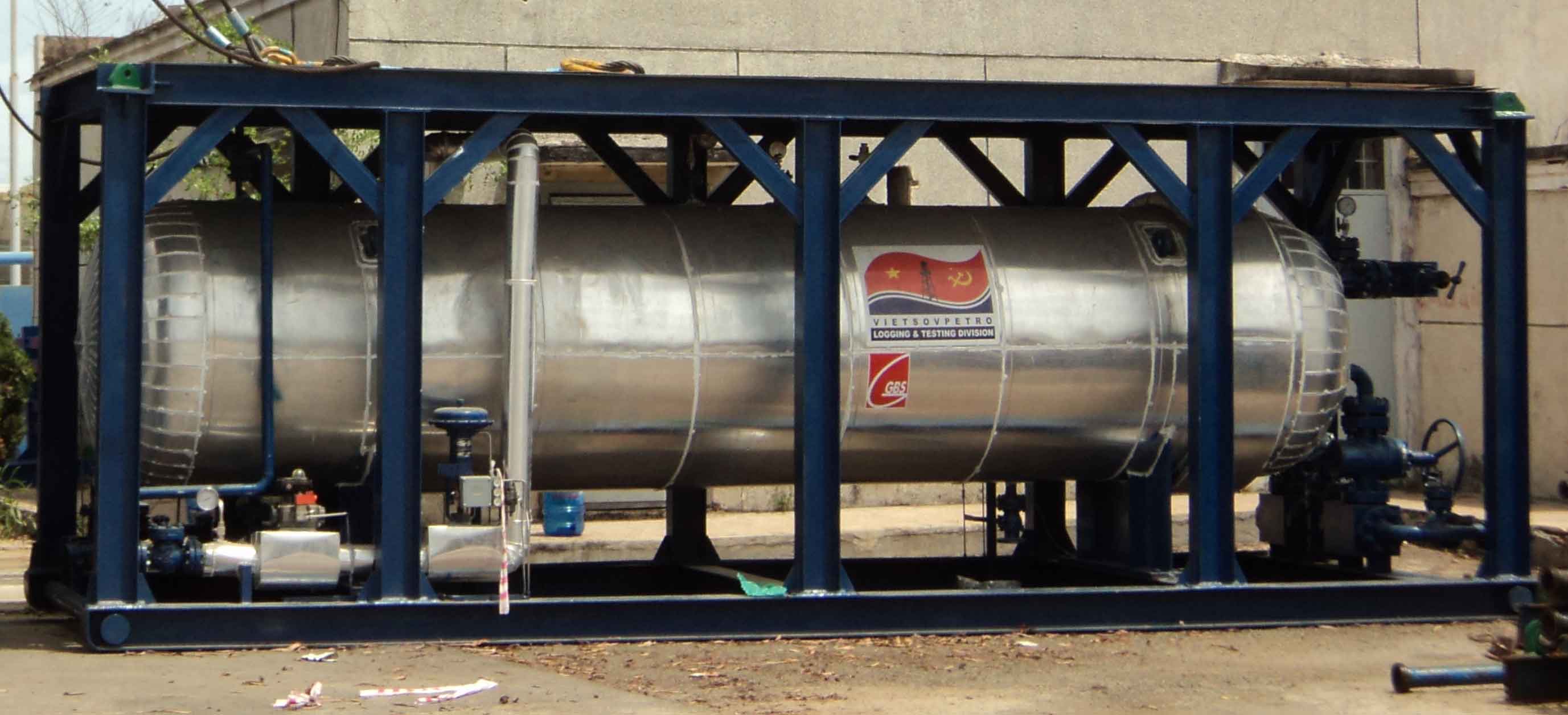

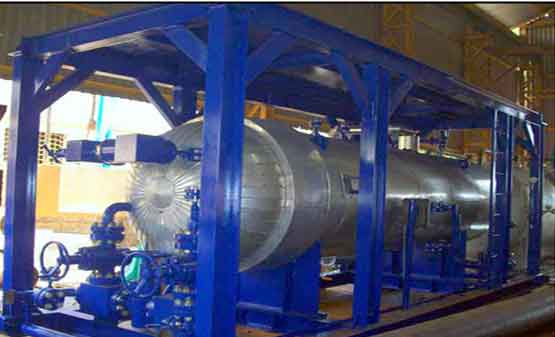

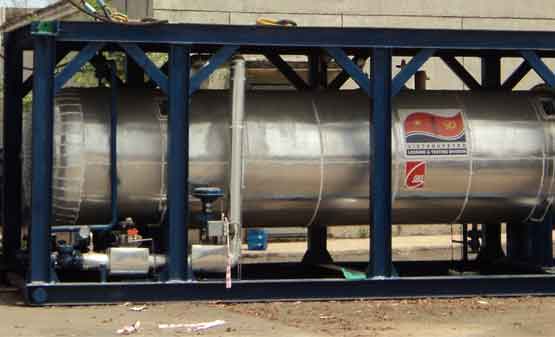

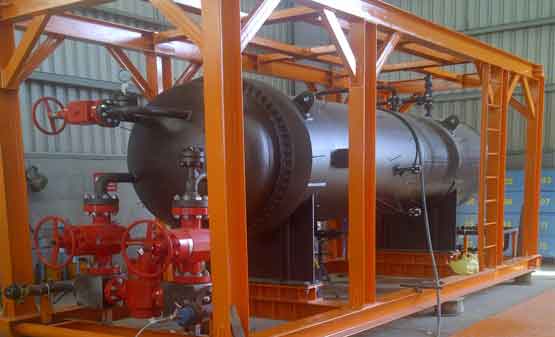

STEAM EXCHANGERS

Technical Description

Sparklet Make Heat Exchanger, which is used to heat the well production, consists of a pressurized shell containing a set of process coils. Steam is piped from an external steam generator into the shell to heat the well effluent flowing the process coils.

Range of portable skid mounted 5000 PSIG, 10000 PSIG (conventional 3”ID or high flow rate 4”ID) and 15000PSIG heat exchanger for rental are primarily used in conjunction with surface well testing applications world-wide to complete the package of heat transfer during well test operations. All our units are DNV 2.7-1approved.

Features
  • Improves separation of oil/water emulsions and foaming oils by reducing surface tension through heat transfer
  • Prevents formation of hydrates
  • Reduces viscosity of oil to improve burner efficiency
  • Equipped with toolbox and spares
  • Fully automatic temperature

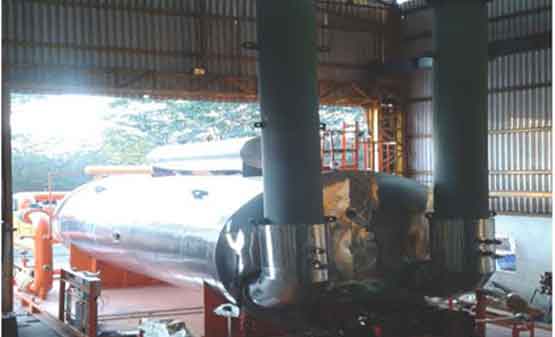

STEAM GENERATORS

Technical Description

Sparklet can offer and arrange of Steam Generator 1.4 Million Btu through to 6 Million Btu`s. can be supplied with compressors or heat exchanger for well testing operations. Installed in purpose built containers to DNV 2.7-1,these fully enclosed units are delivered with internal water tanks, a water softening plant and either internal or external fuel tanks in order to meet all sites or rig requirement's.

Feature & Benefits
  • Steam vents and safety valve vents mounted away form passing personnel.
  • Internal intrinsically safe lightning enables safe operation and maintenance in all conditions.
  • High and low water levels, high pressure steam and flame failure shutdowns are fitted as standard as safety and protection measures.
  • Equipped with toolbox and spares.
  • Gas detection propane, methane and H2S.
Options
  • Steam Hoses
  • Hard steam pipes
  • CO2 fire Suppression

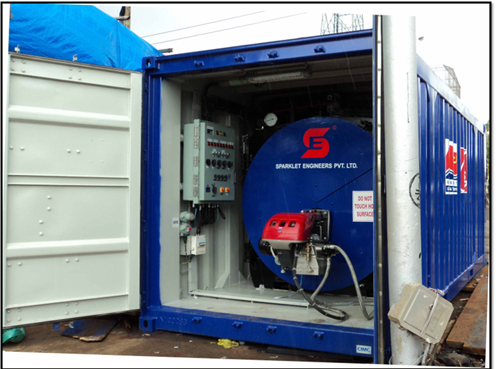

STEAM GENERATOR

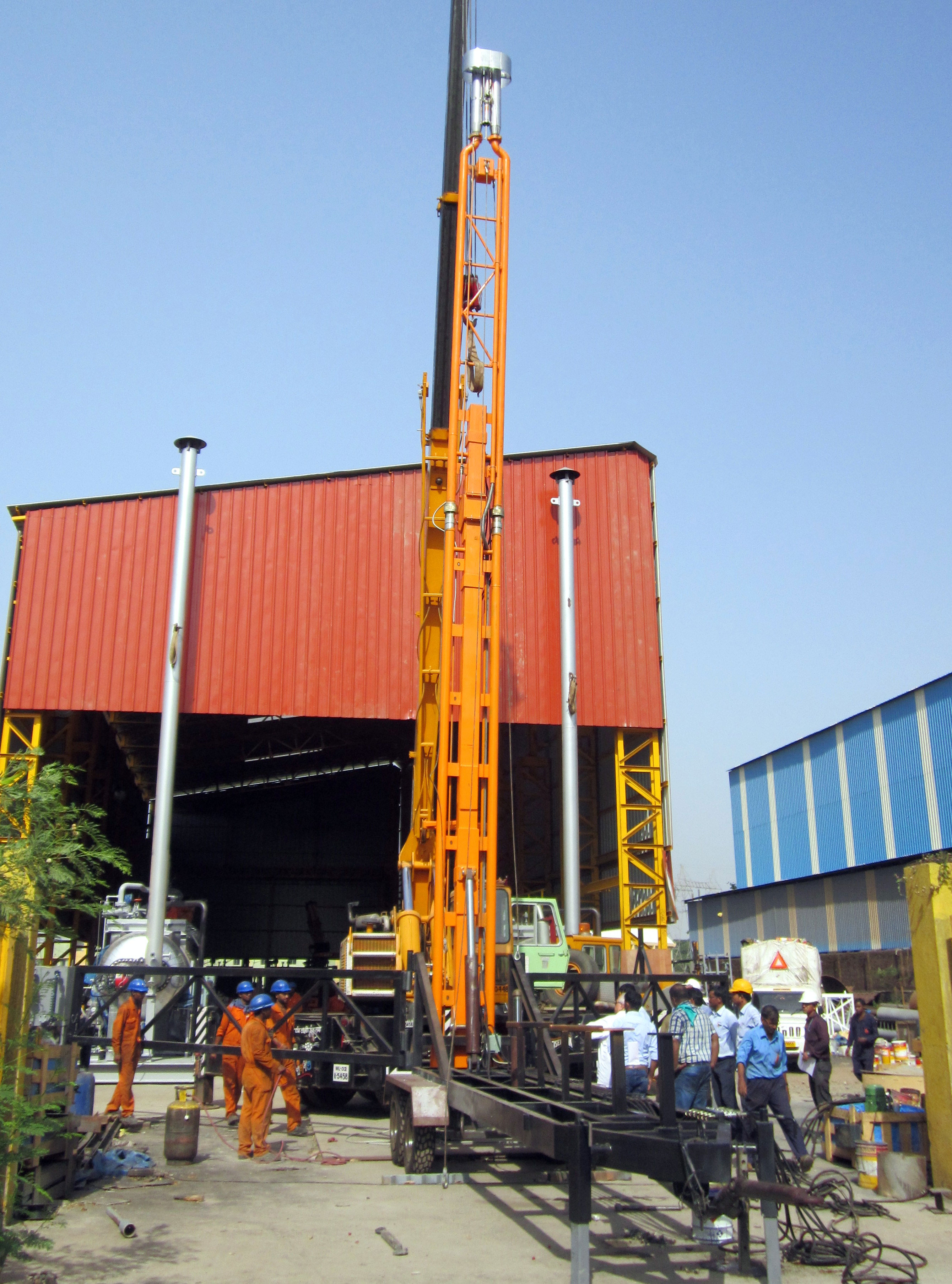

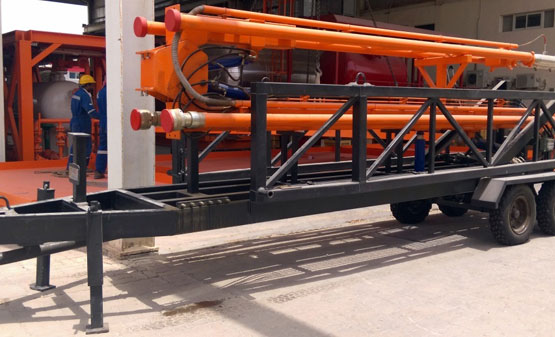

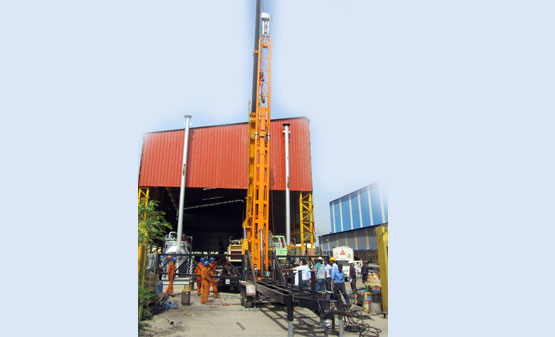

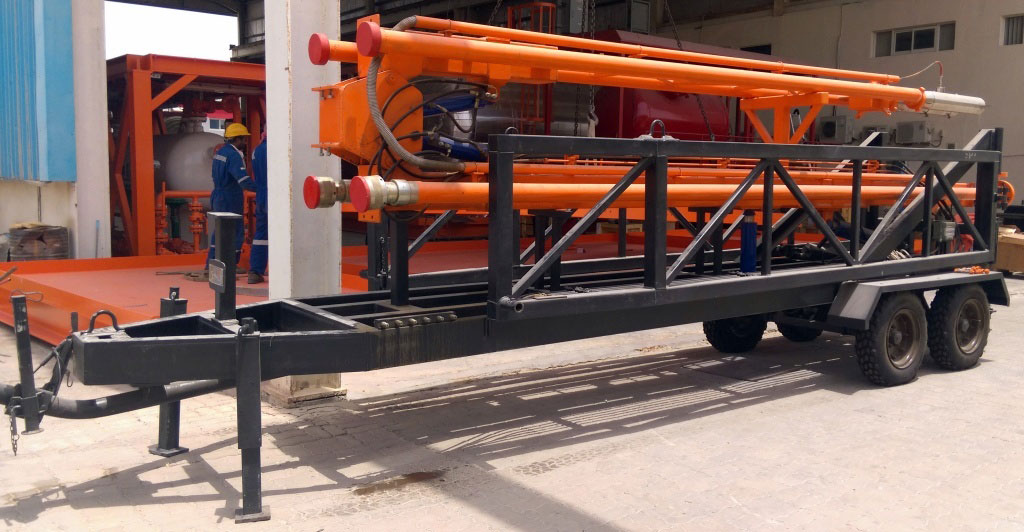

MOBILE FLARE STACKS

SAND MANAGEMENT SYSTEM

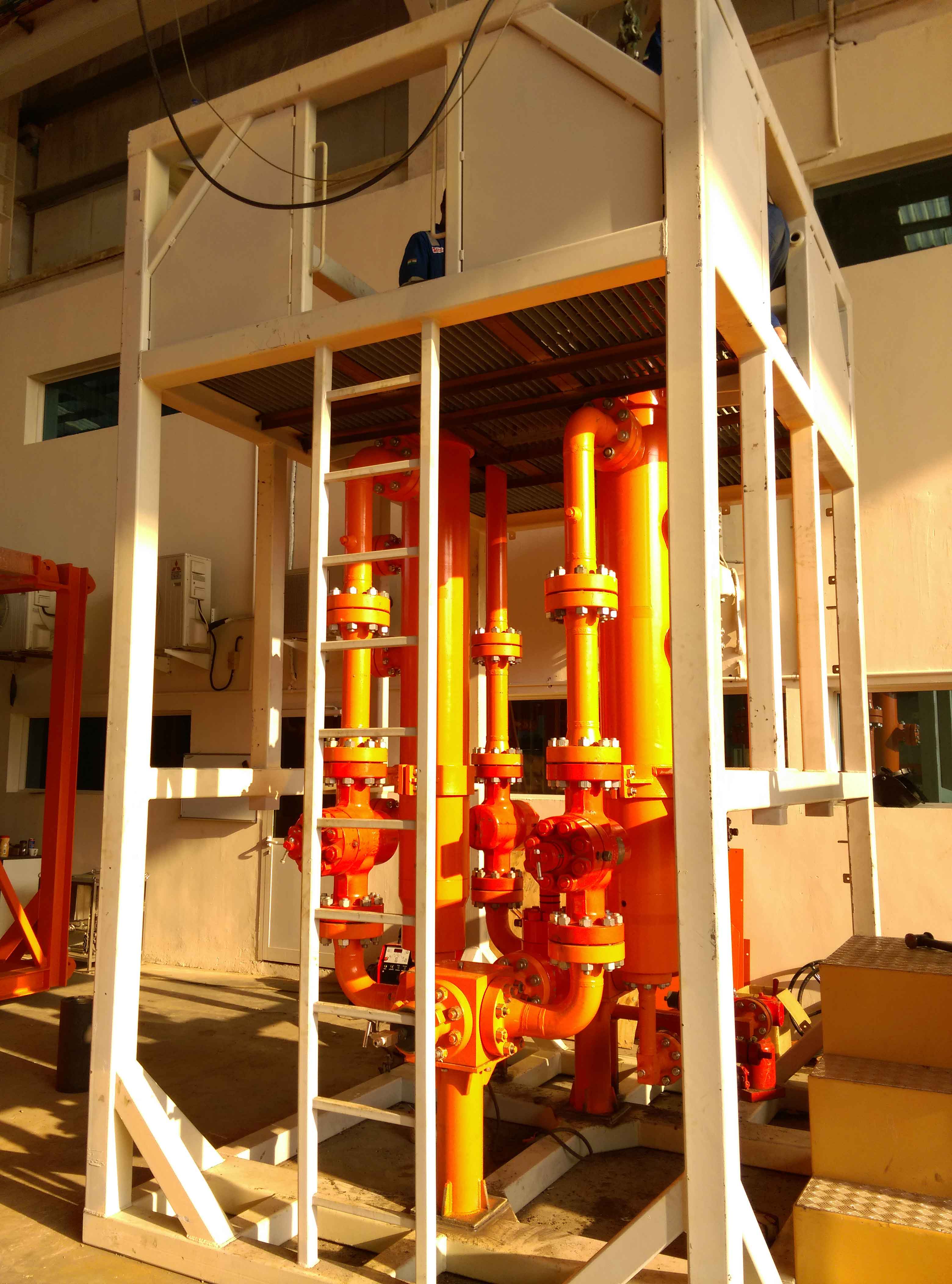

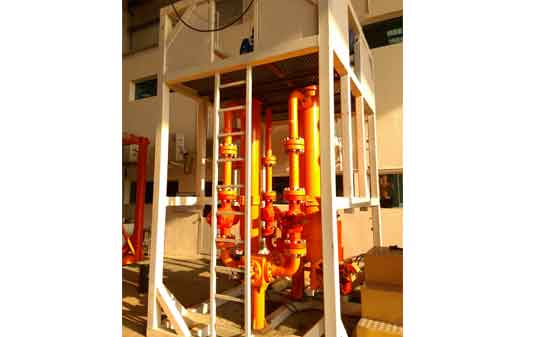

DUAL POT SAND FILTERS

Technical Description

Salient Features
  • Service : H2S
  • Working Pressure : 10000PSI
  • Working Temperature : Upto 121 Deg C
  • Liquid Flow Rate : 5000 BOPD
  • Gas Flow Rate : 30 MMSCFD
  • Design Codes : API- 6A, ASME, NACE.

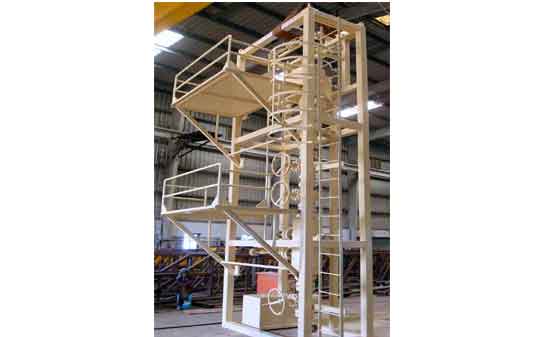

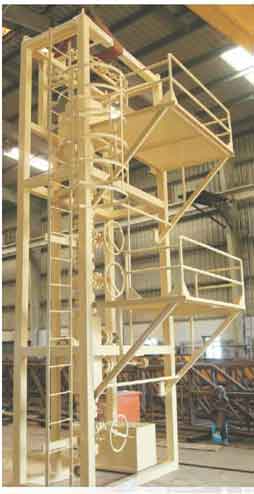

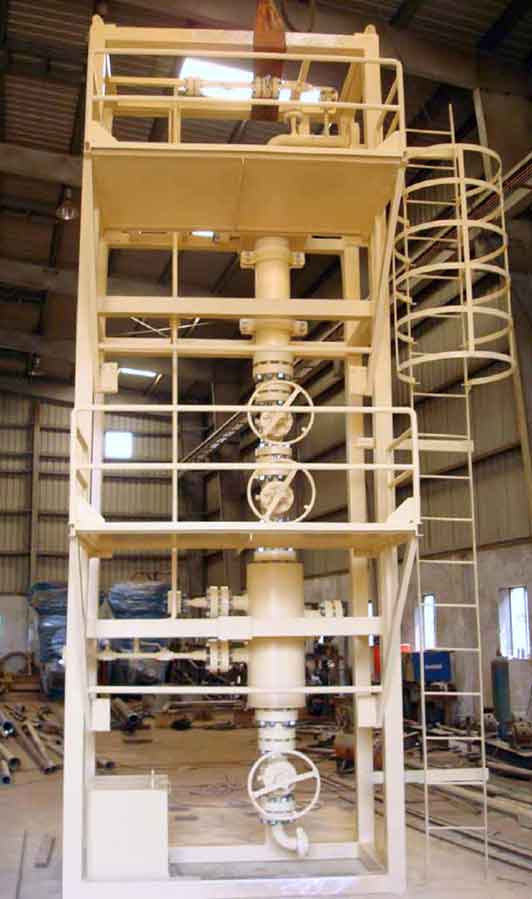

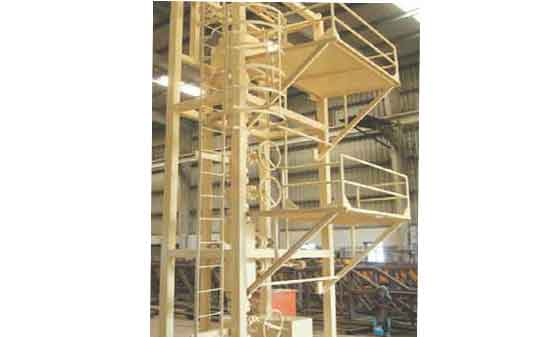

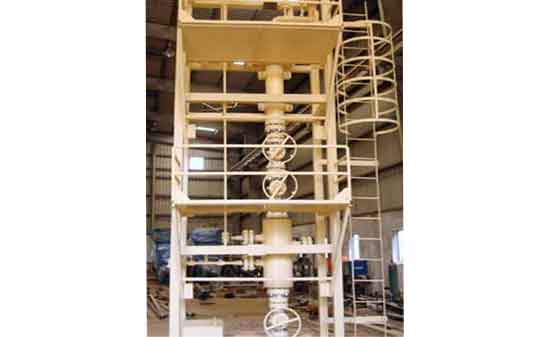

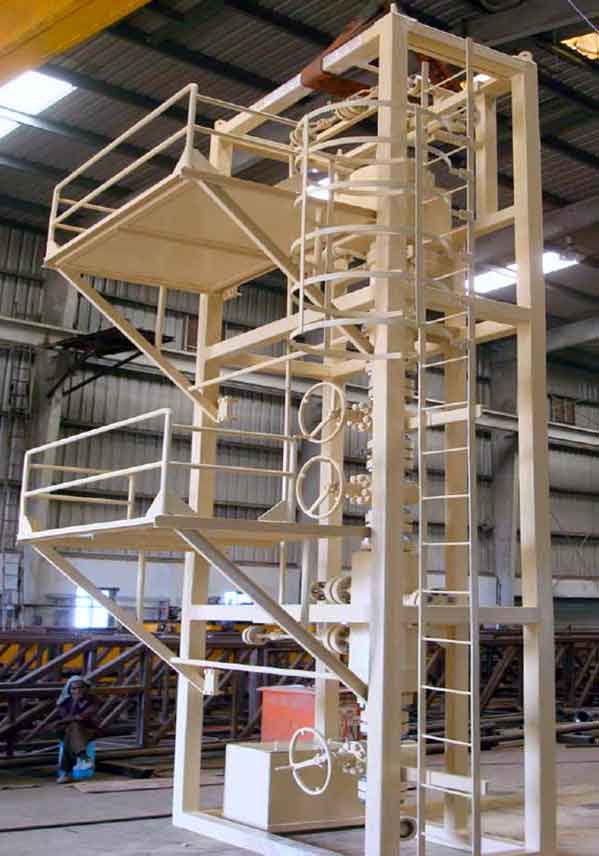

CYCLONE DESANDER

  • Working pressure : 5000 psi
  • Maximum pressure : upto 15000 psi
  • Temperature : 250 deg f
  • Gas Flow rate : 14 mmscfd
  • Liquid Flow rate : 8000 bbl/d
  • Efficiency : 98% of solid dia up to 80 micron

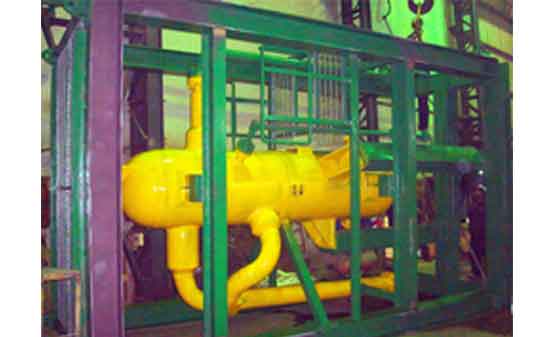

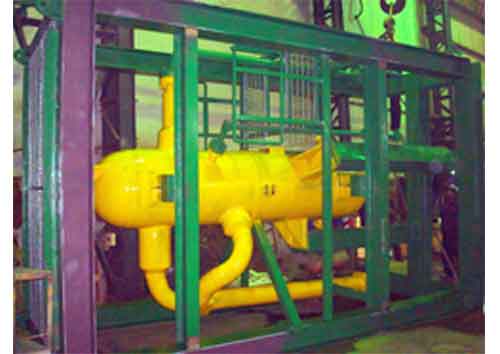

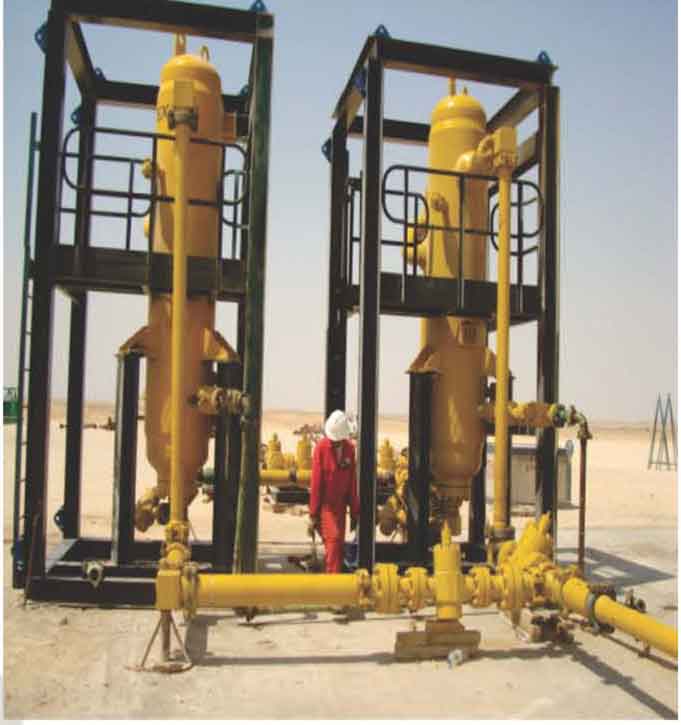

SAND CATCHER

  • Working pressure : 5000 psi
  • Maximum pressure : upto 15000 psi
  • Temperature : 250 deg f
  • Gas Flow rate : 14 mmscfd
  • Liquid Flow rate : 8000 bbl/d
  • Efficiency : 98% of solid dia up to 80 micron

MULTIPHASE FLOW METER PACKAGE

Technical Description

Multi Phase Meter Trailer Mounted package in oil and gas industry The Configuration of MPMS includes below equipment's

  • Data header
  • Surface safety valve
  • Choke manifold
  • By pass metering skid
  • Multi phase meter
  • Electric generator
  • Electric generator
  • Air compressor
  • Lab cabin

Sparklet will provide Multi phase metering skid package range from minimum 5k to 15k maximum.

FEATURES
  • vPressure is monitored and controlled by ESD panel.
  • vMulti-phase meter.

SKID MOUNTED MULTI PHASE FLOW METER SKID

TRAILER MOUNTED MULTI PHASE FLOW METER

Technical Description

Multi Phase Meter Trailer Mounted package in oil and gas industry The Configuration of MPMS includes below equipment's

  • Data header
  • Surface safety valve
  • Choke manifold
  • By pass metering skid
  • Multi phase meter
  • Electric generator
  • Air compressor
  • Lab cabin

Sparklet will provide Multi phase metering skid package range from minimum 5k to 15k maximum.

Technical Description
  • Pressure is monitored and controlled by ESD panel.
  • Multi-phase meter.

FILTERS

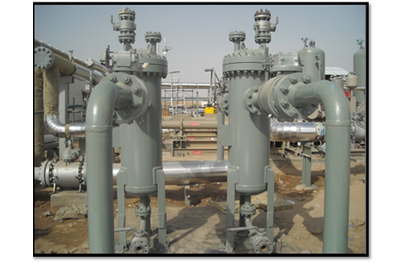

BASKET FILTERS

Technical Description

Basket Type Strainers are widely used to remove foreign particles & debris from liquid flow. They provide an effective means to upgrade liquid quality, protect costly equipment's like bearings, valves, pumps, burners, spray nozzles, and condensers etc. Basket Strainers are also used in conjunction with a filter by installing strainer directly ahead of filter; the large heavy particles are arrested by the strainer, there, by reducing frequency of replacing element of a filter.

basket-filter

INJECTION WATER COARSE FILTERS

Technical Description

The objective of this process is to remove coarse suspended solids that could deposit on process equipment creating scale and corrosion sites.

Filtration with coarse filters can typically range from less than 50 microns upwards. Filter cleaning is accomplished using automatic backwashing, and is required when the differential pressure on the unit increases to the point of maximum or the flow becomes too restricted.

Maximum filtration area
  • Robust mechanical design
  • Balanced collection nozzles
  • Low friction contact parts

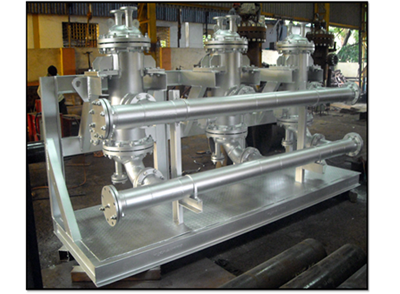

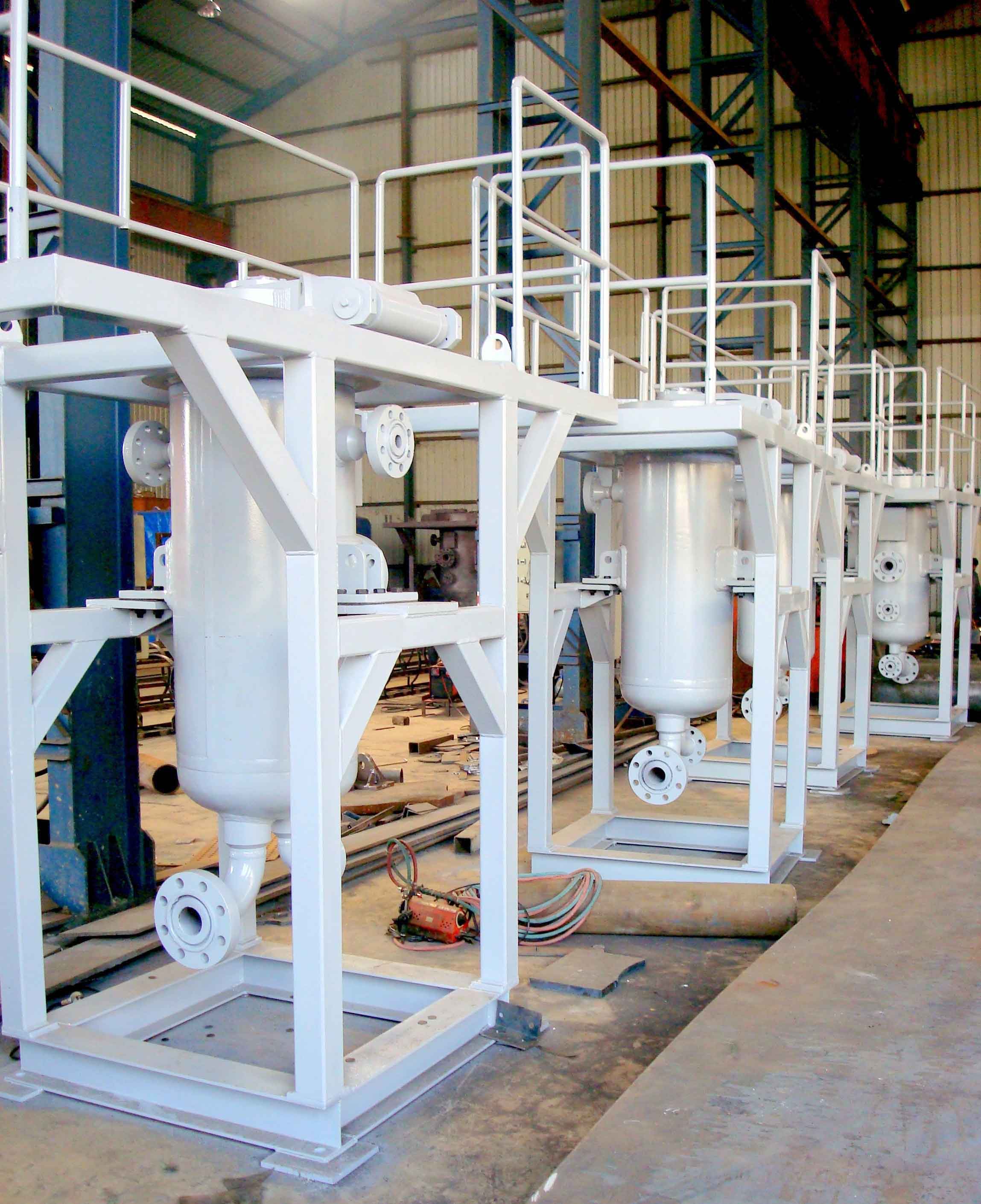

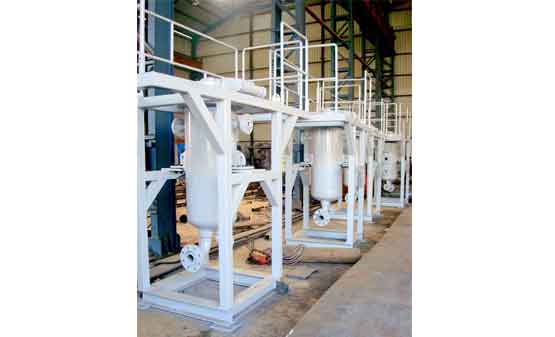

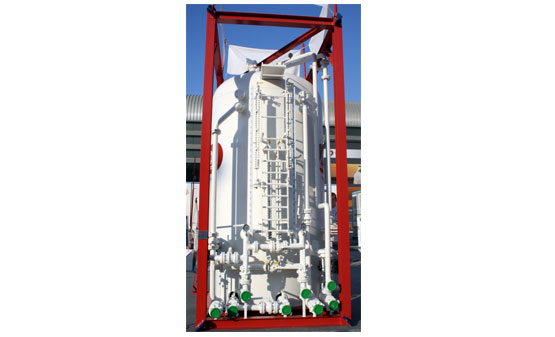

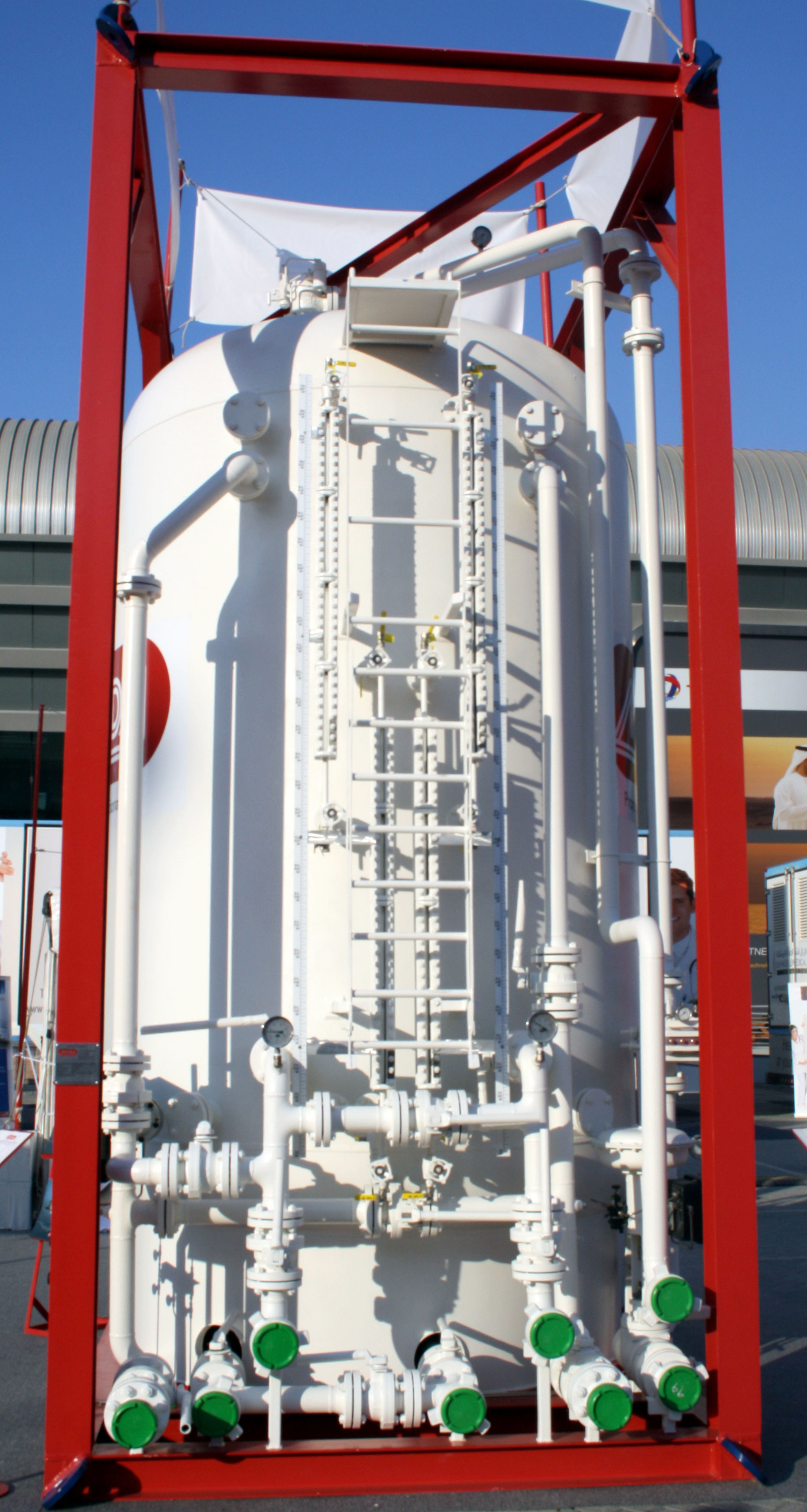

INJECTION WATER FINE FILTER

Technical Description

Particles and marine organisms must be removed from water before its injection into sensitive process equipment and oilfield reservoirs for water flood and enhanced oil recovery operation. The automatic cleanable cartridge filter system offered is a compact fine filter with proven low operating costs, is designed to filter widely varying water quality. These filters are used as polishing filters in process industry. The filters comprise of filter housing, filter cartridges, tube sheets, and positive sealing arrangement for cartridges to avoid bypassing. The fine filter is considered superior to media (sand) filters and more cost-effective than replaceable cartridge filters.

Features

The system offers simple, trouble free and fully automatic operation, with routine maintenance to ensure compliance with water specifications. It is of compact size and minimal weight. There is no compaction and/or replacement of media characteristic of multimedia filters. The degree of filtration and resultant water quality can be changed to meet unexpected requirements

water-fine

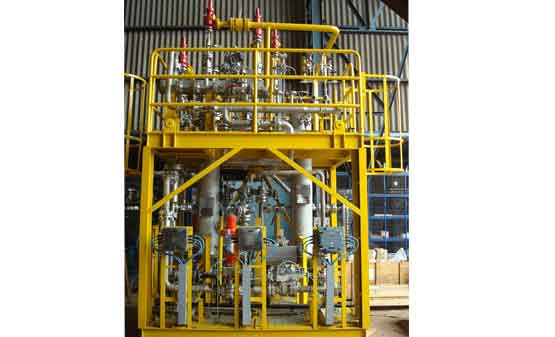

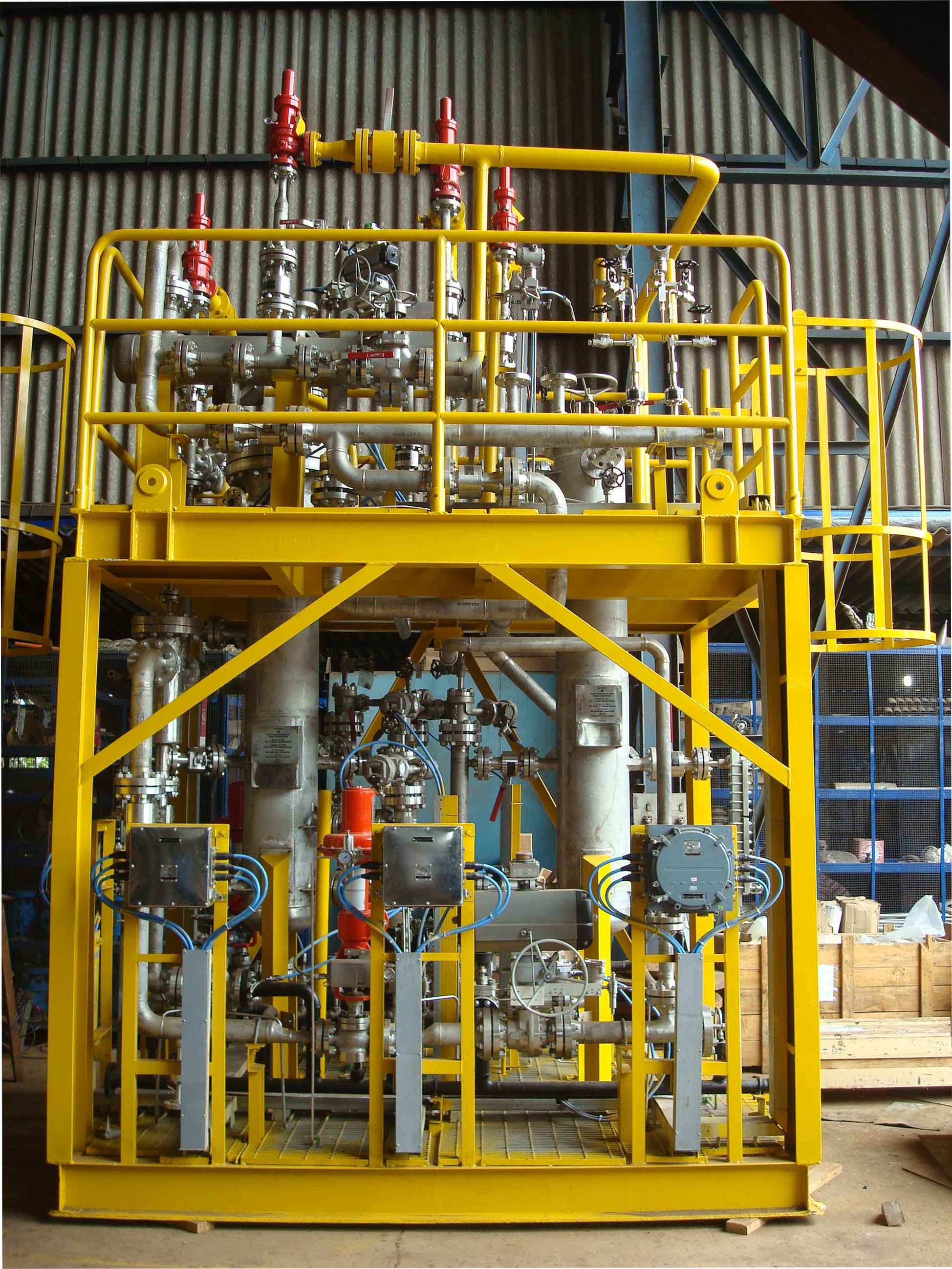

FUEL GAS COALESCER FILTER

RAW WATER DIESEL FILTER

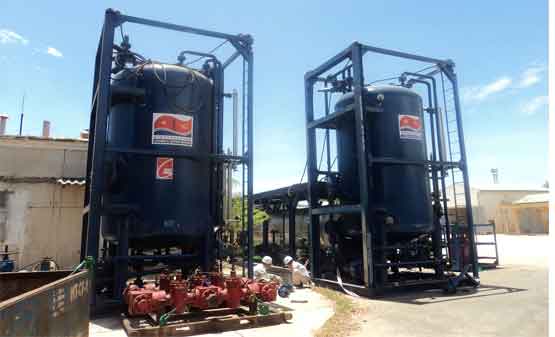

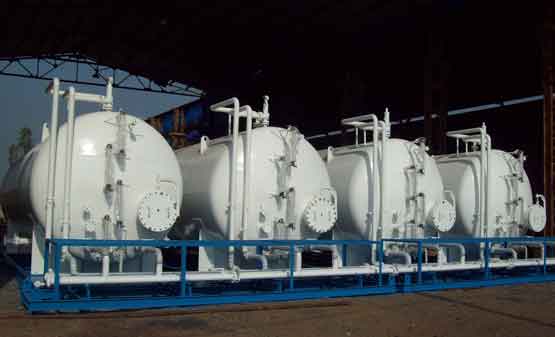

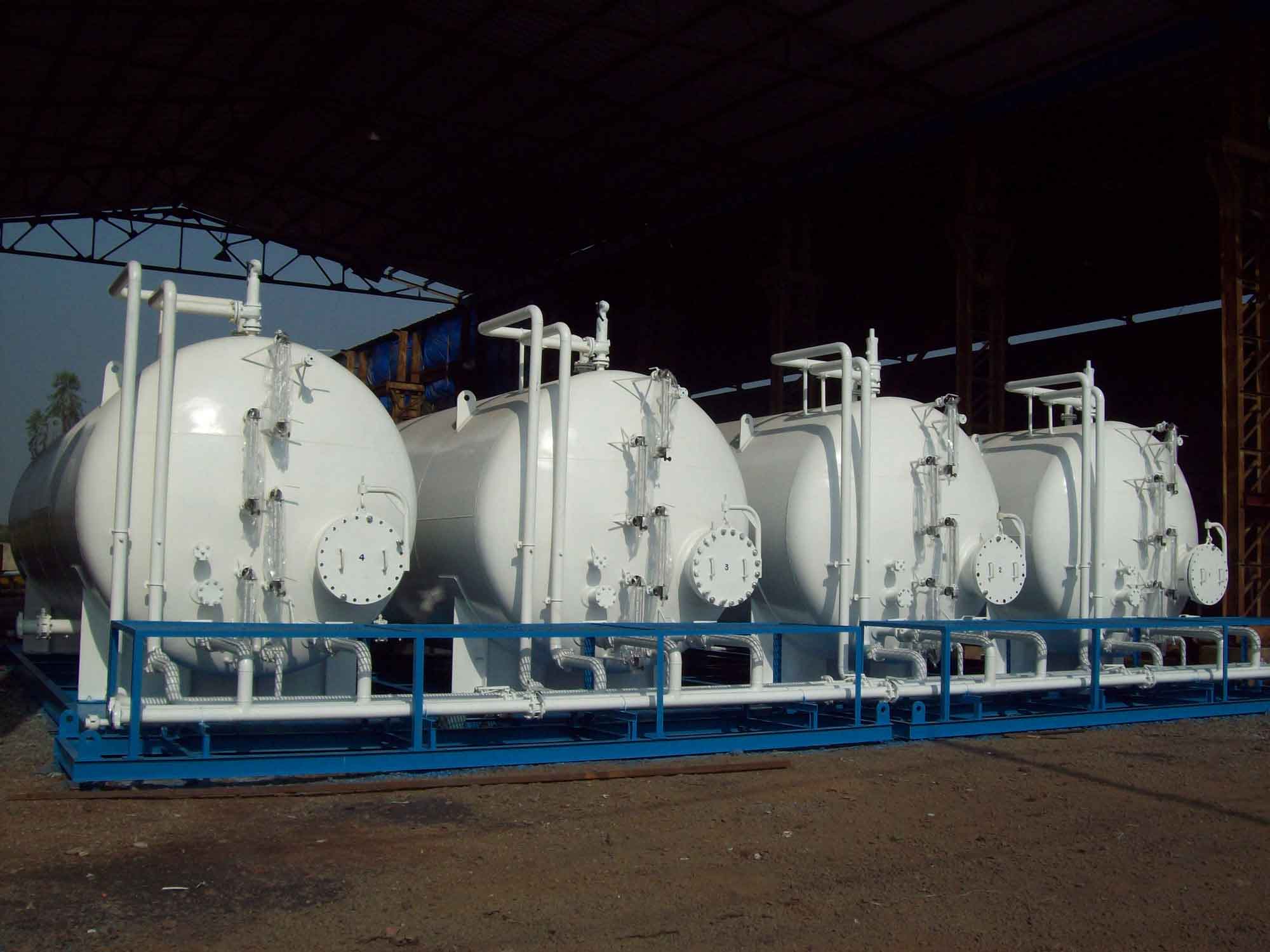

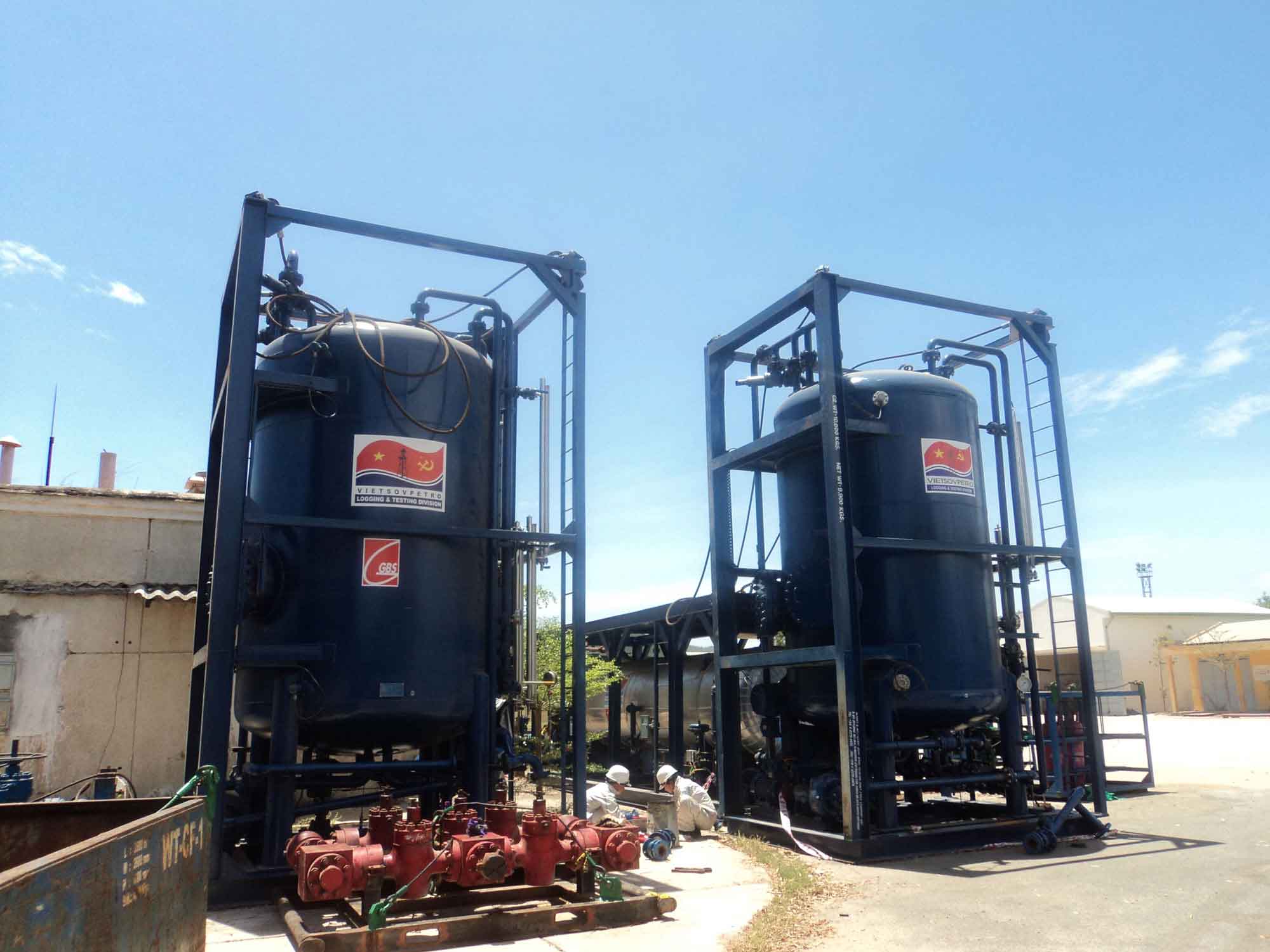

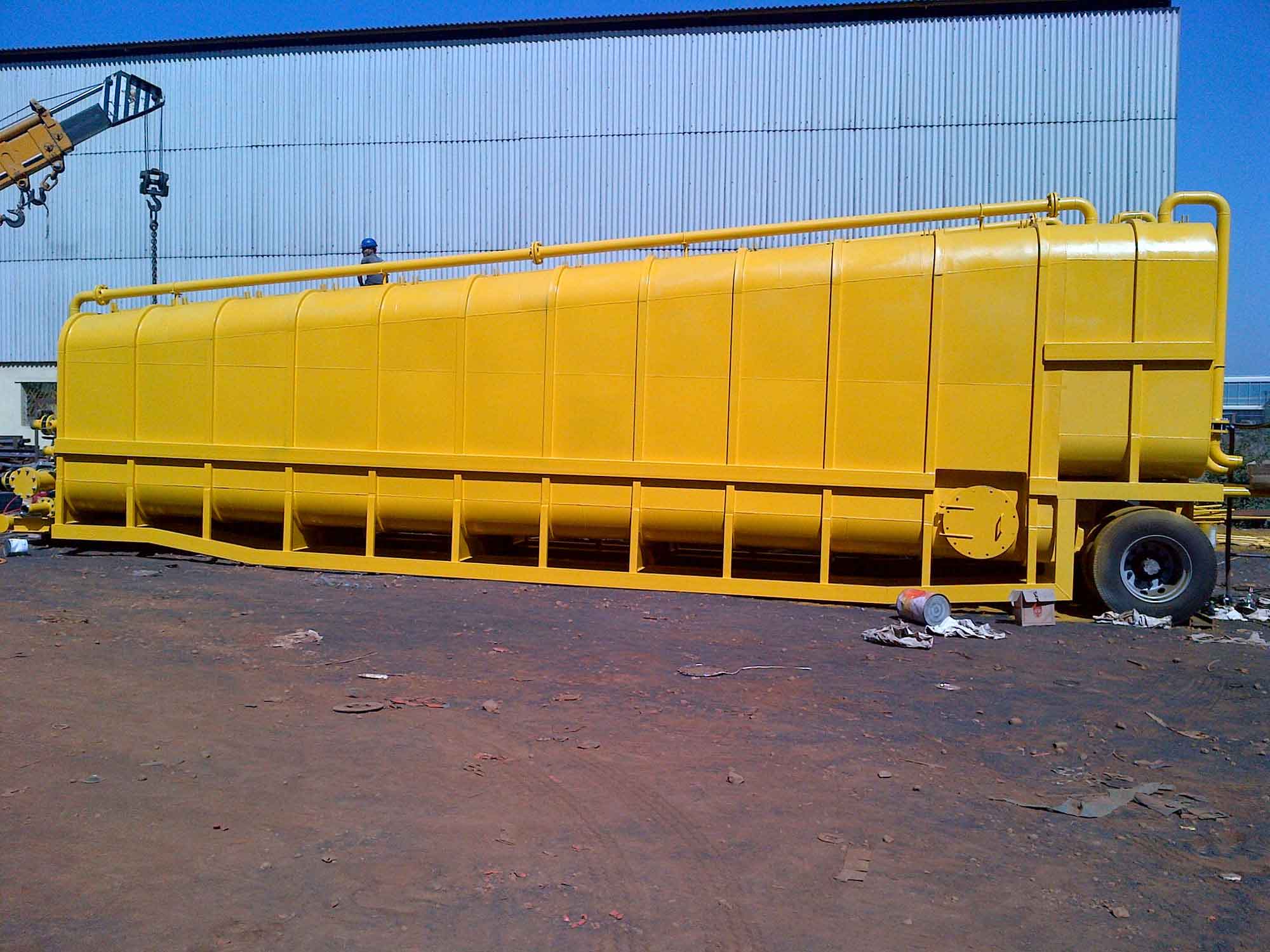

TANKS AND VESSELS
