FLOW LINE PRODUCTS

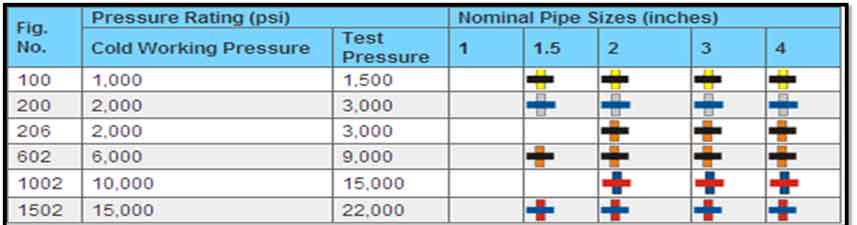

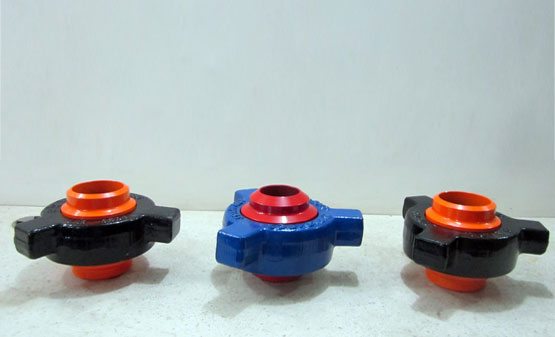

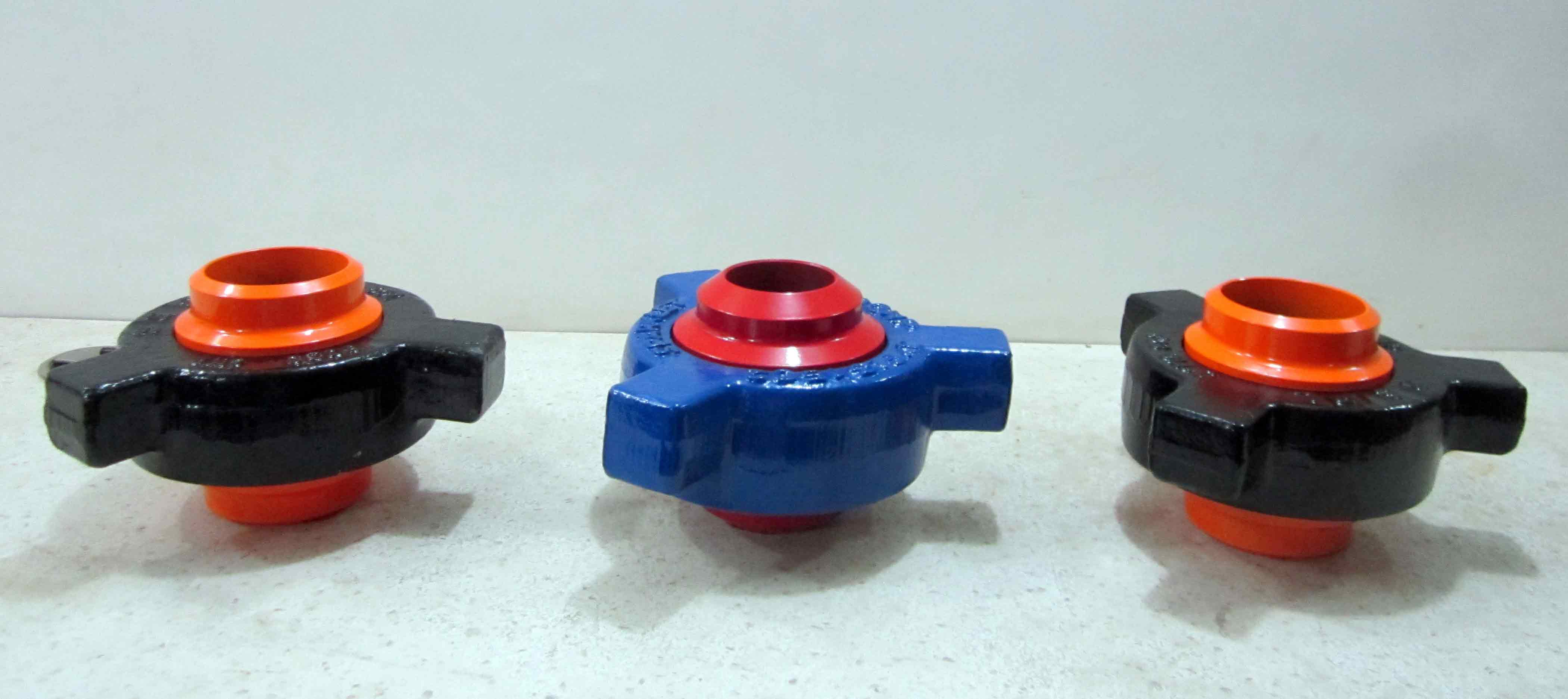

Hammer Unions

Hammer unions

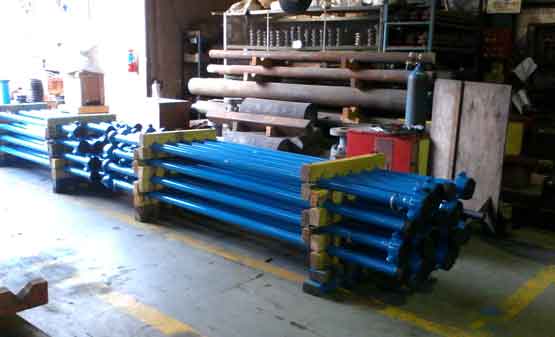

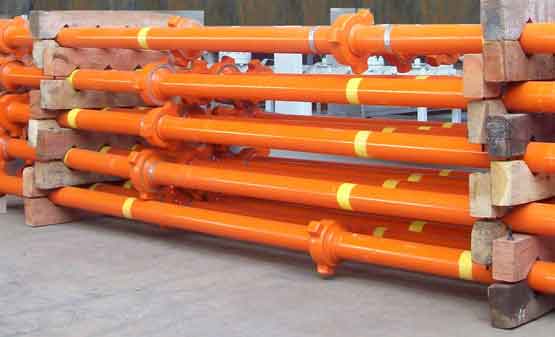

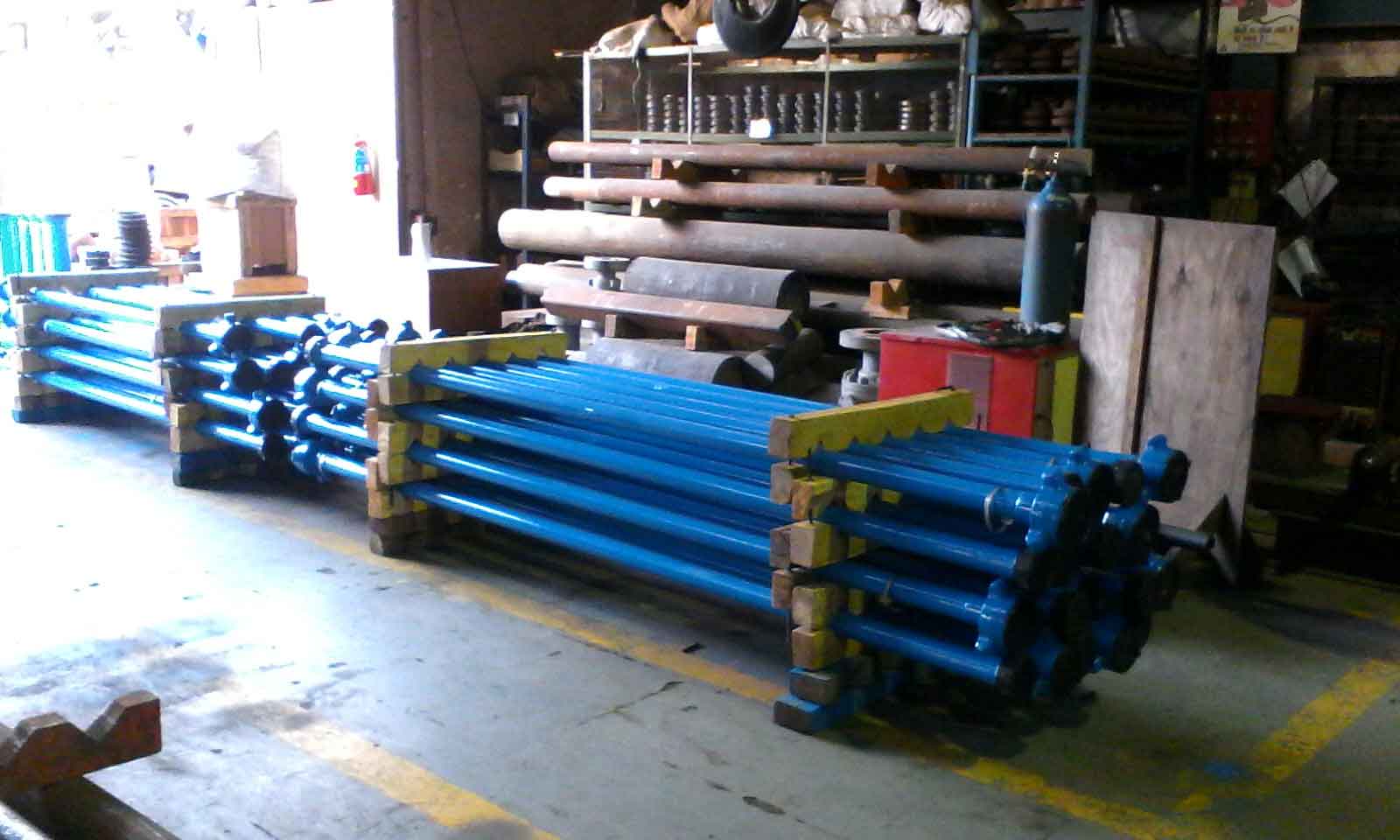

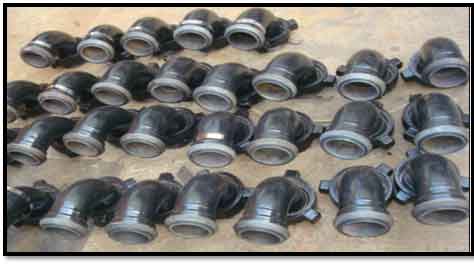

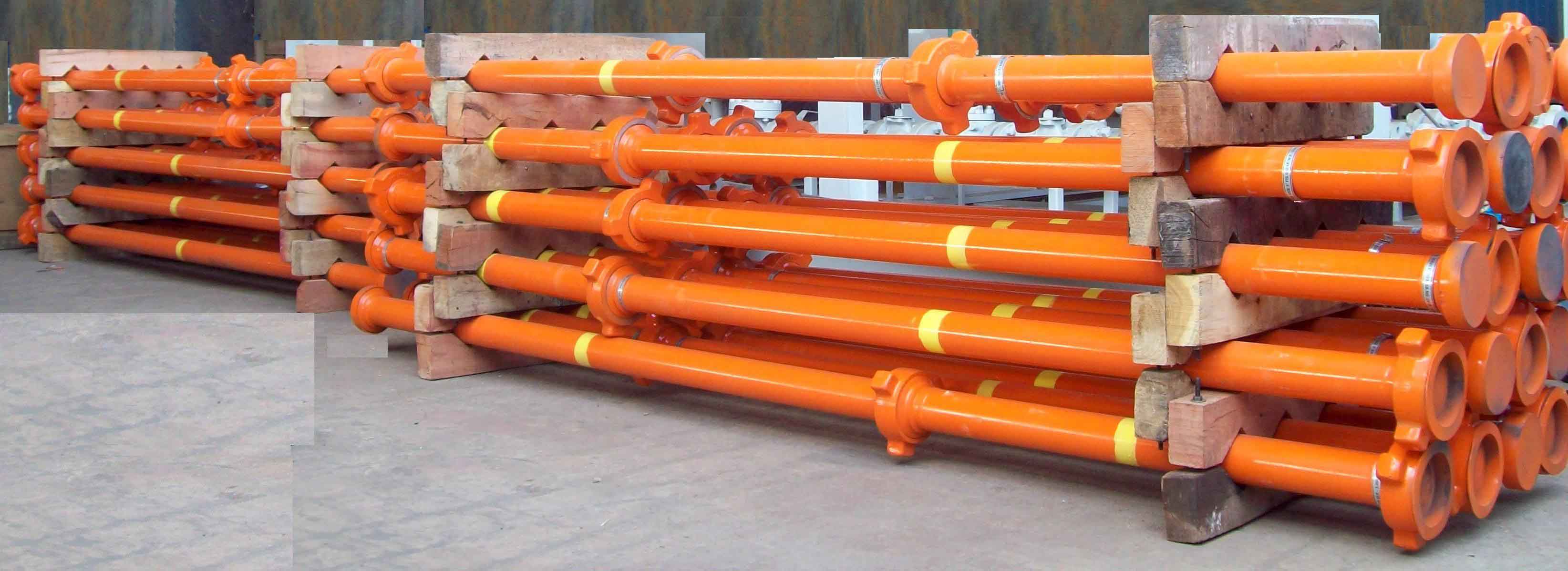

HIGH PRESSURE PUP JOINTS & ELBOWS

Sparklet manufactures high pressure i.e. 5000 psi to 15000 psi CWP Integral And Welded ,Elbows and Pipes for flowline. The end connection is Fig. 602 to Fig. 1502 with pipe sizes 2” ,3” are in regular scope and 4” size can be made available as per requirement. Each pipe and elbow qualifies hydrostatic test at rated pressure. Each welded joint passes through a radiography test. The hammer Unions are precisely machined and the threads are inspected with relevant gauges.

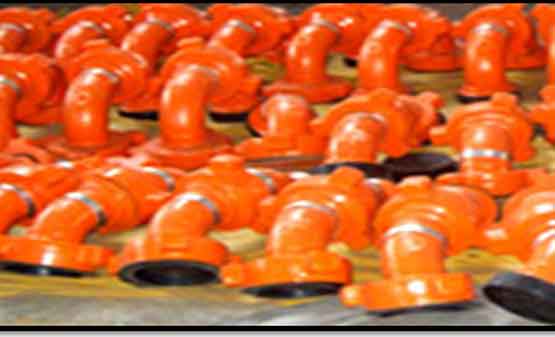

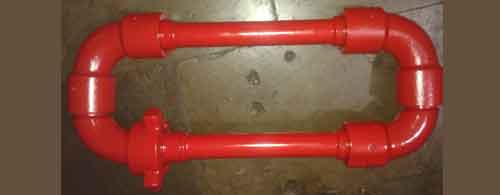

SWIVEL JOINTS

swivel joints

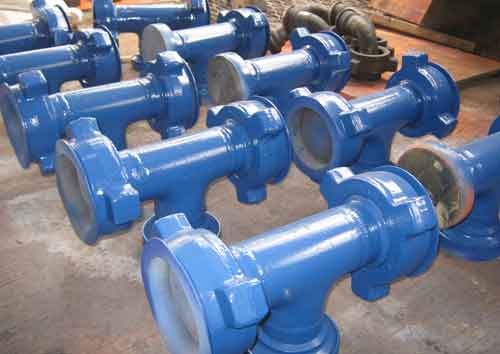

Tess

swivel joints

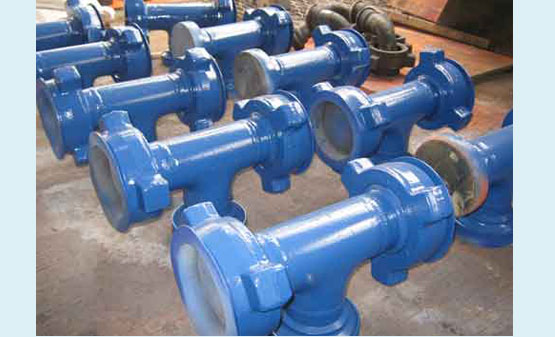

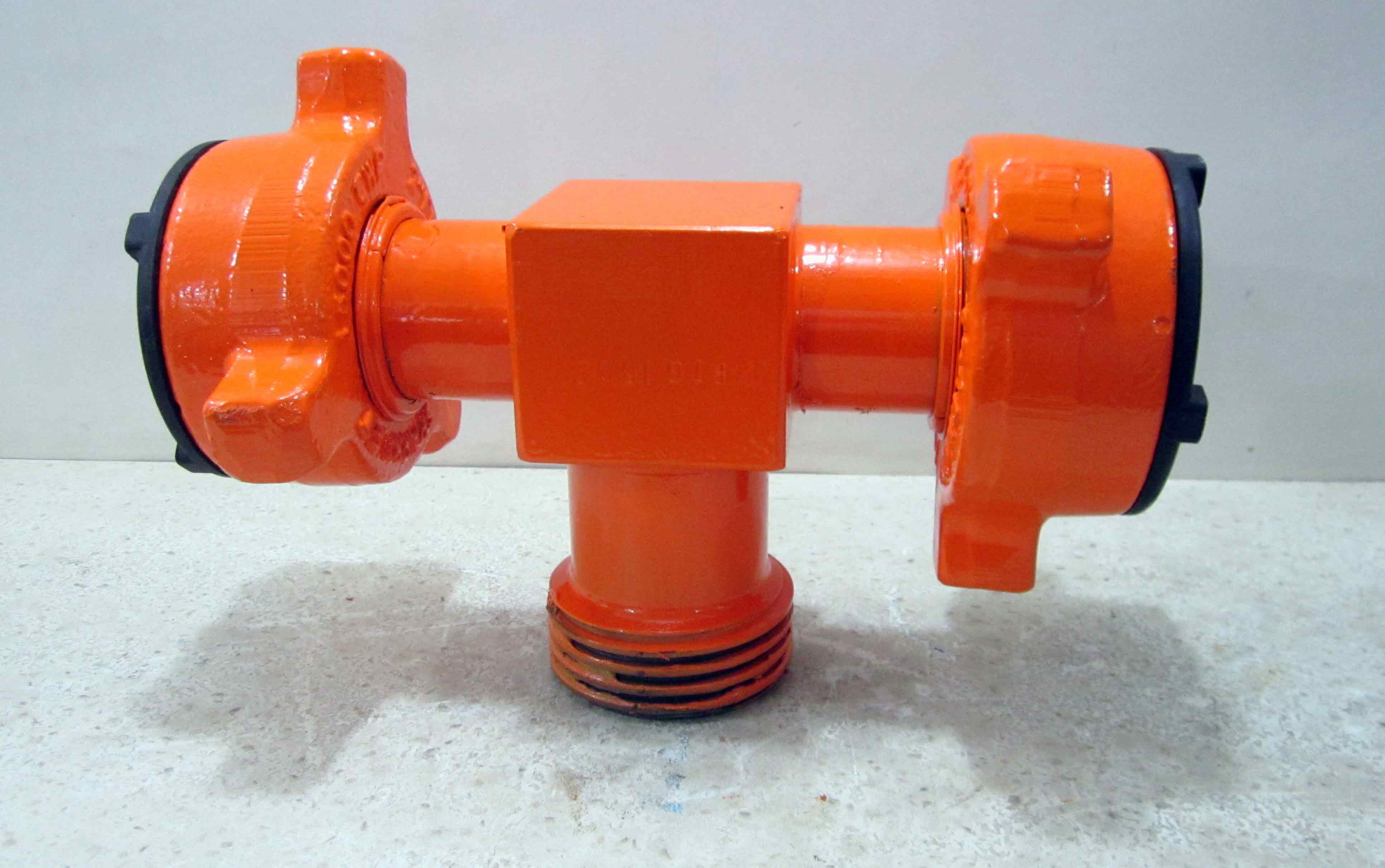

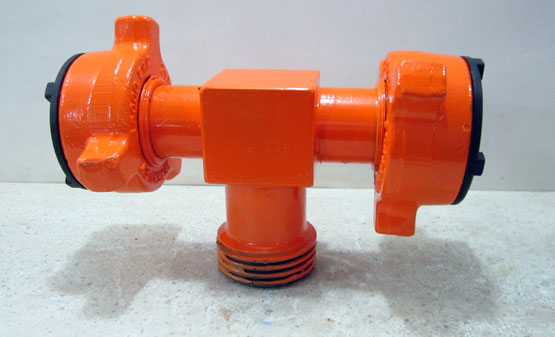

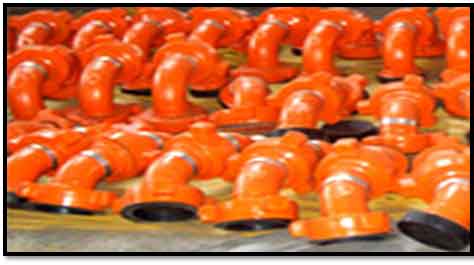

HIGH PRESSURE FITTINGS

High Pressure Fittings Are Available Width
Sizes 2". 3" & 4"
End Connection Available Width Hammer Union end Connections
Pressure Rating Pressure Tested Upto 1500 psi
Types Tees Elbows - 45° - 90°, Cross Long Bends

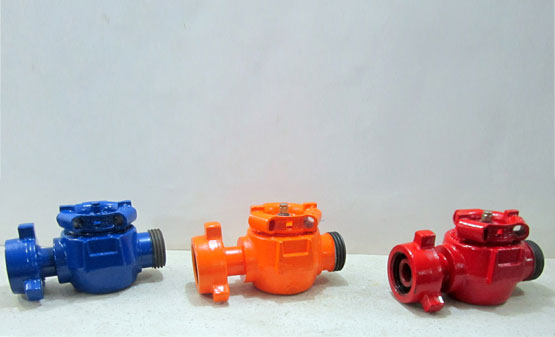

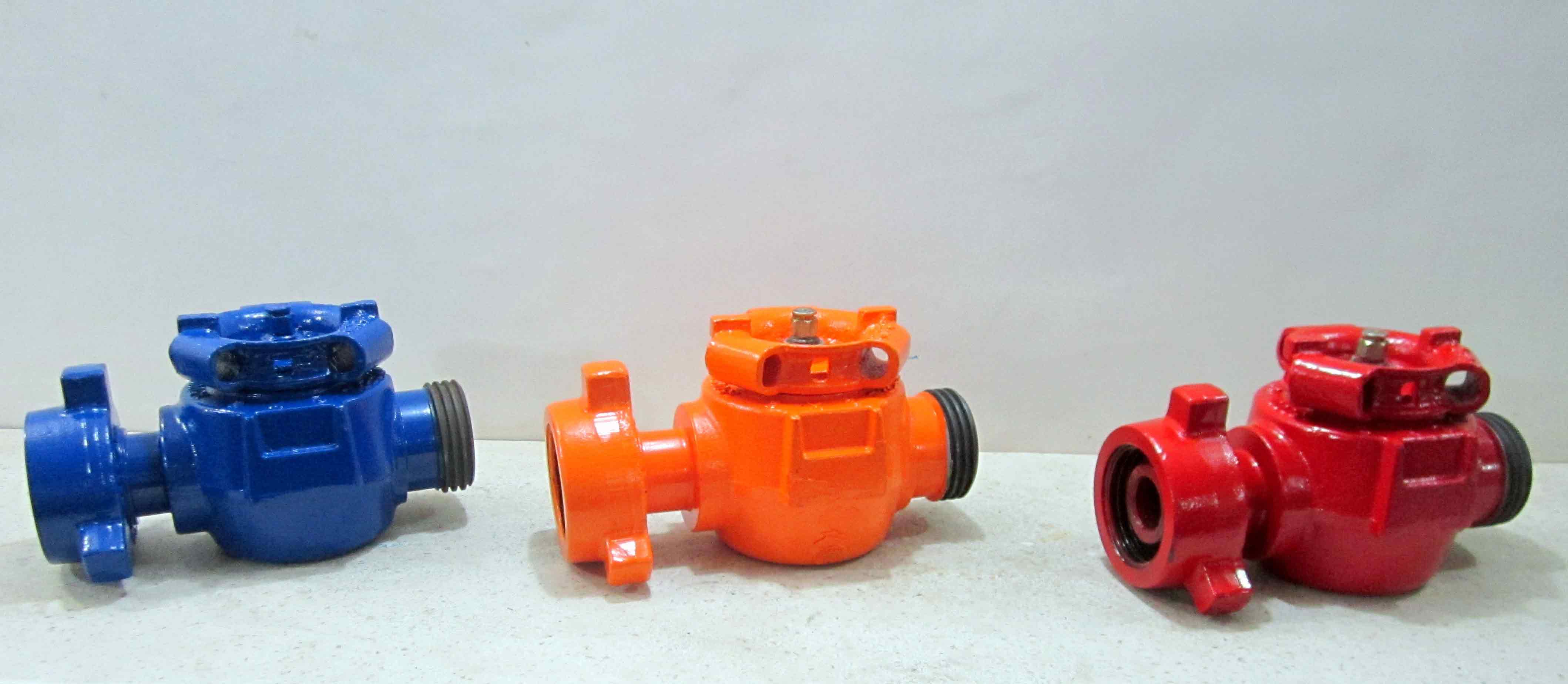

PLUG VALVES

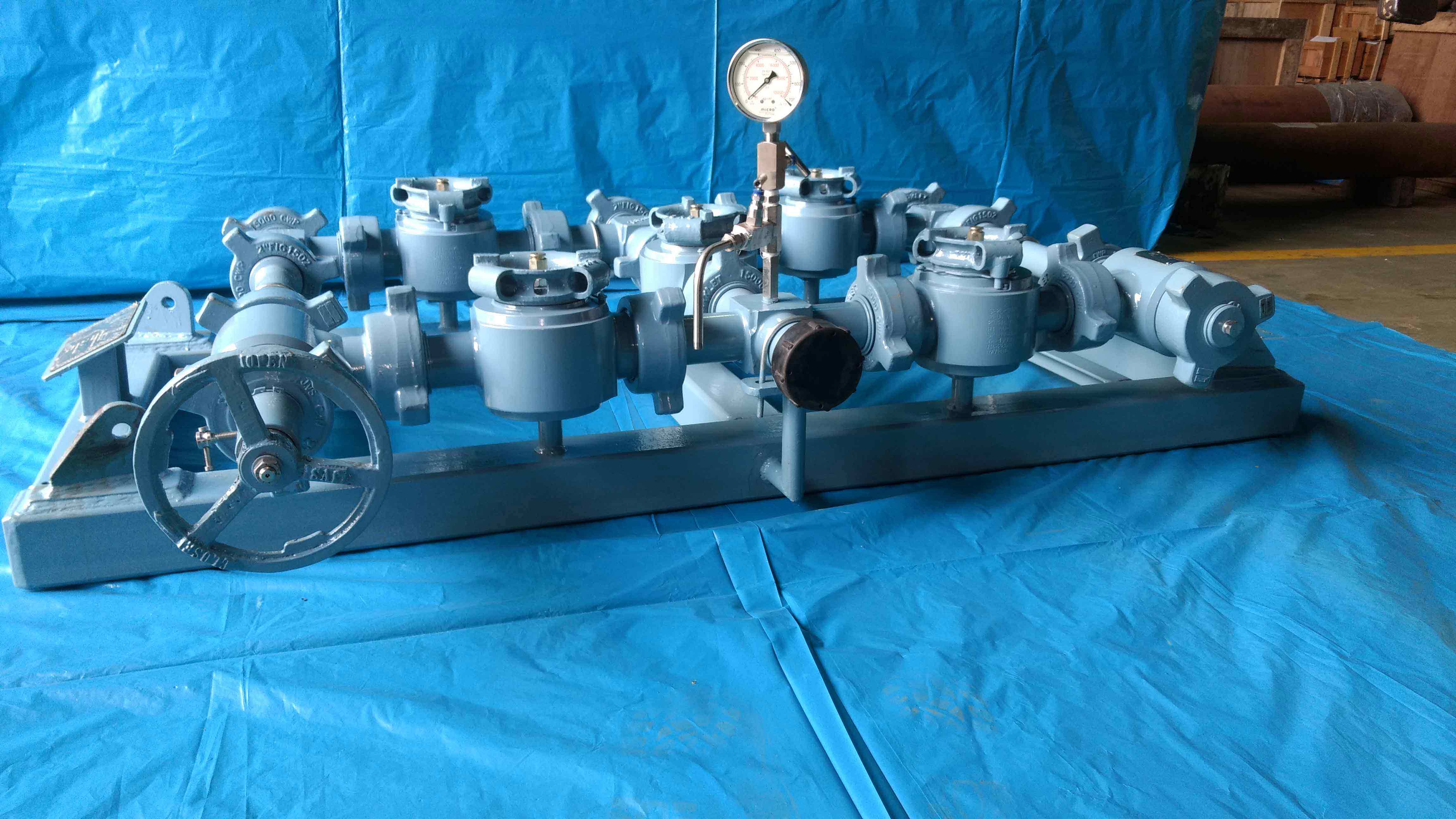

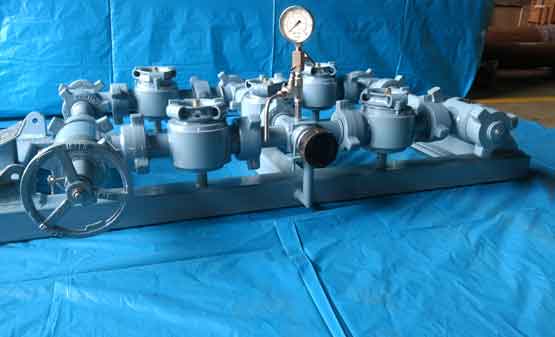

FLOW BACK MANIFOLD
